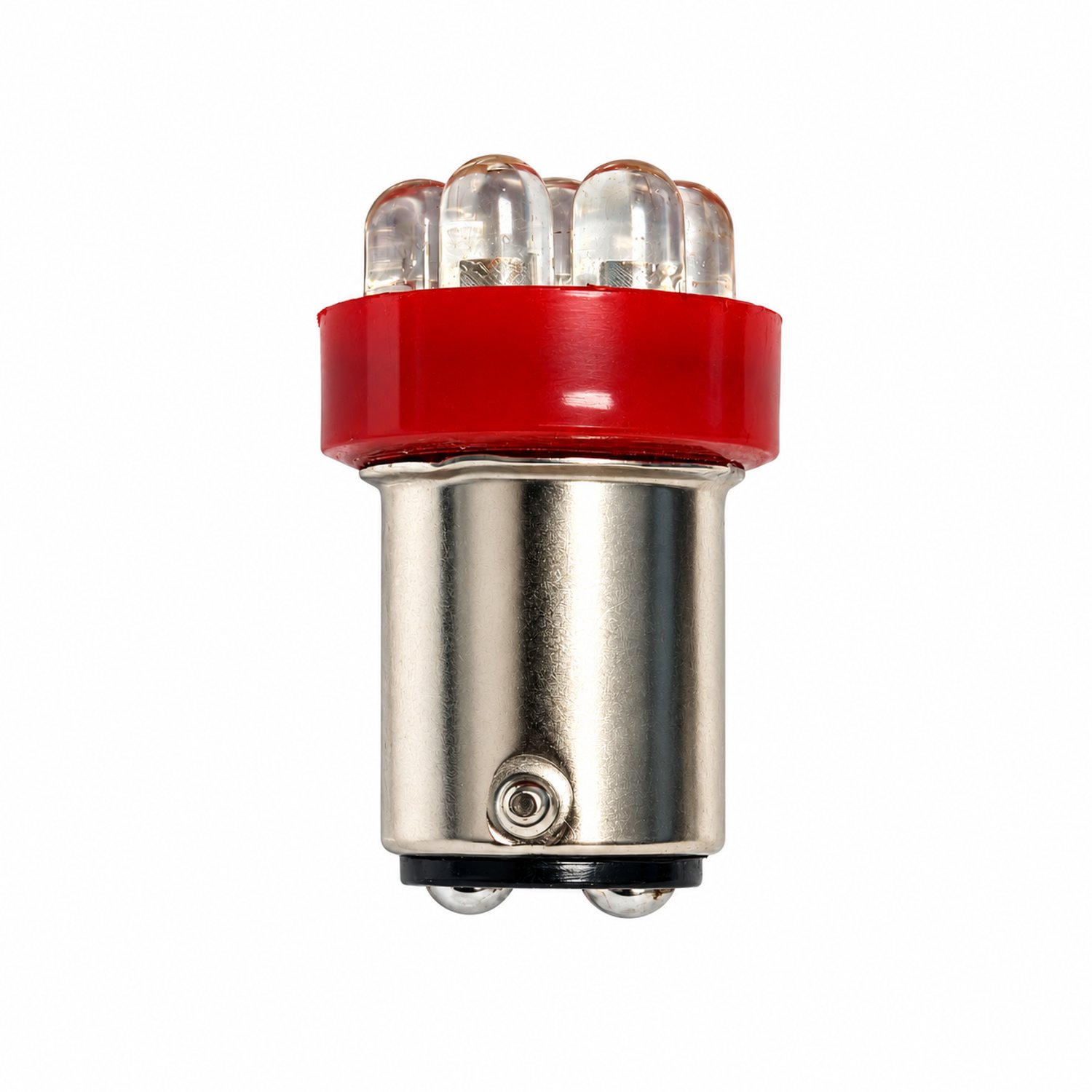

The Norman Lamps LED-6S6-120-DCR is a 120V LED miniature bulb designed as a direct drop-in replacement for S6-type incandescent lamps in BA15D double contact bayonet sockets. The bulb features a cluster of 7 individual LEDs that emit a vivid red color, making it well suited for indicator lights, signal lamps, machine status towers, panel displays, and other visual identification or warning applications that require a distinct red LED output at standard 120V AC.

This LED miniature bulb measures 1.25 inches in length and 0.80 inches in diameter, matching the compact S6 form factor for easy installation in existing fixtures without modification. The BA15D double contact bayonet base ensures a secure, vibration-resistant connection in sockets designed for this industry-standard base type. Operating at 120V AC, the LED-6S6-120-DCR is compatible with standard North American mains voltage and requires no additional driver or transformer.

As an LED miniature bulb, this lamp offers a significantly longer service life compared to the incandescent 6S6, 15T7, and 25T8 types it replaces, reducing maintenance frequency in hard-to-reach or high-cycle indicator applications. The solid-state LED construction also provides improved resistance to shock and vibration relative to filament-based lamps. This bulb is sold individually and is a direct replacement for 6S6, 15T7, 15T8, 25T7, and 25T8 incandescent miniature types with a BA15D double contact bayonet base.

LED-6S6-120V-DC-RED, 120V AC, 7 LED Cluster, BA15D base, Emitted color is Red.

LENGTH 1.25" - Diameter .80"

7 Cluster LED - Replaces multiple items

6S6-120V-DC Types , 15T7, 15T8, 25T7, 25T8 types.

• LED Miniature Bulb - 120V AC operation with BA15D double contact bayonet base; direct drop-in replacement requiring no fixture modification
• 7-LED cluster design emits vivid red color; ideal for indicator lights, machine status towers, signal lamps, and panel display applications
• Compact S6 form factor: 1.25 in. length x 0.80 in. diameter - fits existing BA15D sockets sized for S6, 15T7, 15T8, 25T7, and 25T8 incandescent types
• Solid-state LED construction provides superior shock and vibration resistance compared to filament-based incandescent miniature lamps
• Dramatically longer LED service life versus the incandescent types replaced, reducing replacement frequency in indicator and signal lighting applications
• Sold individually (each); replaces 6S6, 15T7, 15T8, 25T7, and 25T8 incandescent miniature bulb types with BA15D double contact bayonet base

Tags: LED-6S6-120-DCR, BA15D Red, 6S6-120V-DC RED LED, 15T7-130V-DC, 25T8-130V-DC,
