Quartz sealed beam lamps represent the premium tier of sealed beam technology, utilizing quartz glass construction that enables significantly higher operating temperatures, brighter light output, and superior performance compared to standard and halogen sealed beams made with conventional glass. The quartz glass lens and reflector assembly can withstand the intense heat generated by high-wattage filaments operating at elevated temperatures, allowing these specialty sealed beams to produce exceptional luminous output—often 50-100% brighter than equivalent standard sealed beams. Quartz sealed beams find their niche in demanding professional applications including aviation lighting (aircraft landing lights, taxi lights), off-road racing, emergency vehicles, professional search and rescue equipment, industrial high-intensity work lights, and any application where maximum illumination justifies the premium cost of quartz construction.

The quartz advantage stems from material properties that dramatically outperform standard borosilicate glass. Quartz (fused silica) maintains structural integrity and optical clarity at temperatures exceeding 1,000°C, far beyond the capabilities of conventional glass which softens around 600°C and would fail under the thermal stress of high-power sealed beam operation. This heat tolerance allows quartz sealed beams to use filaments operating at much higher temperatures—producing whiter, more intense light—and higher wattage ratings that would destroy standard glass sealed beams. The superior thermal shock resistance of quartz also prevents the cracking and thermal stress failures that occur when hot conventional glass sealed beams are exposed to rain, snow, or cold water, making quartz construction essential for applications involving extreme temperature cycling or water exposure during operation.

Light output from quartz sealed beams significantly exceeds standard and halogen alternatives. Where a typical halogen sealed beam might produce 1,200-1,500 lumens, premium quartz sealed beams can deliver 2,000-3,000+ lumens or more depending on wattage and design. This exceptional brightness enables illumination of much greater distances and wider areas, critical for applications like off-road racing (seeing terrain features at high speeds), aviation (illuminating runways during approach), search and rescue operations (spotting subjects in large search areas), and professional work lighting (large construction sites, mining operations). The whiter color temperature of high-intensity quartz lamps—often 3,200-3,400K—provides excellent color rendering and contrast that improves visibility beyond what raw lumen numbers suggest. The combination of high output and quality white light makes quartz sealed beams the choice when maximum performance is essential.

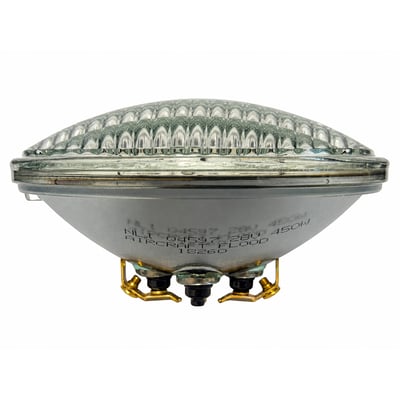

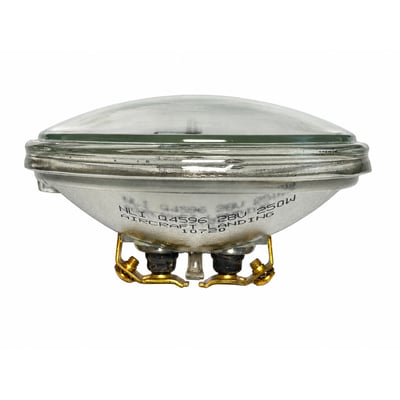

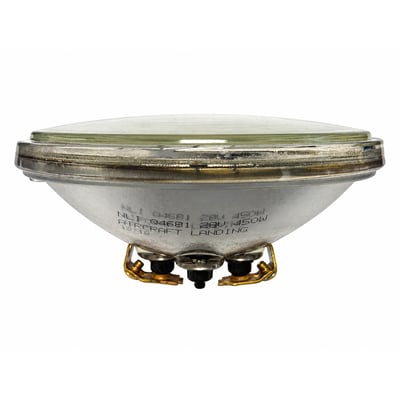

Aviation applications represent a major market for quartz sealed beams, where the demanding operational requirements of aircraft lighting necessitate premium-performance lamps. Aircraft landing lights require extremely bright output to illuminate runways during night approaches from thousands of feet, plus the ability to withstand temperature extremes from sub-zero flight altitudes to hot ground operations, rapid thermal cycling when switched on/off, vibration from aircraft operations, and the thermal shock of hot lamps exposed to rain and sleet during descent. Quartz sealed beams meet these requirements where standard glass lamps would fail. Aircraft taxi lights, position lights, and logo lights also frequently use quartz construction for reliability under aviation operating conditions. Aviation-grade quartz sealed beams meet rigorous FAA specifications including TSO certifications and PMA (Parts Manufacturer Approval) requirements, ensuring compliance with aviation regulations.

Off-road and racing applications leverage quartz sealed beam performance for competitive advantage and safety. Off-road race vehicles—desert racing, rally, rock crawling, mud racing—require powerful lighting to see terrain features, obstacles, and track conditions at high speeds in zero-ambient-light conditions. Quartz sealed beams delivering 2,000-3,000+ lumens enable racers to drive faster and safer, potentially making the difference between winning and losing. The vibration resistance and thermal durability of quartz construction withstand the punishment of off-road racing far better than standard sealed beams. Recreational off-road vehicles including Jeeps, trucks, and ATVs also benefit from quartz sealed beam upgrades for nighttime trail riding, hunting and camping access, and overland expeditions where lighting performance directly impacts safety and capability. Many off-road enthusiasts run arrays of multiple quartz sealed beams for maximum illumination across multiple zones (distance, peripheral, flood coverage).

Emergency vehicle and public safety applications use quartz sealed beams where superior lighting performance enhances operational effectiveness. Fire trucks, ambulances, police vehicles, search and rescue equipment, and tow trucks often integrate high-intensity quartz sealed beams as scene lighting to illuminate emergency scenes, accident sites, rescue operations, and work zones. The brilliant output helps personnel work safely and effectively in nighttime or poor visibility conditions. Search and rescue teams use handheld and vehicle-mounted quartz sealed beam spotlights for searching large areas and signaling rescuers. The reliability of sealed beam construction combined with premium quartz performance makes these lamps dependable tools for critical operations where lighting failures could compromise safety or mission success.

Industrial and commercial work lighting employs quartz sealed beams in high-bay fixtures, portable work lights, equipment lighting, and security lighting where exceptional brightness and durability justify premium costs. Construction sites, mining operations, shipping yards, and large industrial facilities use quartz sealed beam fixtures for area lighting during nighttime operations. The high lumen output per fixture reduces the number of fixtures required, potentially offsetting higher lamp costs. Portable work lights and generator-powered lighting towers use quartz sealed beams for their brightness and abuse-resistance. Heavy equipment and material handling vehicles use quartz work lights for operator visibility during extended shift operations. The long life and reliability of quartz construction reduce maintenance costs and downtime in commercial applications where lighting failures impact productivity.

Wattage and power consumption of quartz sealed beams typically exceed standard sealed beams—commonly 55-100 watts or more compared to 35-60 watts for standard versions—reflecting the higher-performance orientation. The increased power consumption generates more heat requiring adequate ventilation and appropriate electrical system capacity. Verify that your application's electrical system can handle the current draw of quartz sealed beams; multiple high-wattage lamps may require relay and upgraded wiring to prevent voltage drop, blown fuses, and wiring damage. The heat generated by quartz sealed beams necessitates proper mounting with clearance from heat-sensitive materials and adequate airflow for cooling. Despite higher power consumption, the dramatically improved light output delivers better lumens-per-watt performance than simply using more lower-wattage standard sealed beams to achieve similar brightness.

Lifespan and replacement costs represent trade-offs with quartz sealed beam technology. The high filament operating temperatures and intense output that deliver superior performance also typically result in shorter operational lifespans—often 100-500 hours compared to 400-800+ hours for halogen or standard sealed beams. The premium cost of quartz sealed beams (typically 2-4x the price of standard sealed beams) means replacements are expensive. For professional applications where the performance justifies costs, this is acceptable, and keeping spare lamps on hand is standard practice. For casual or recreational users, the costs and frequent replacement may be prohibitive, making halogen sealed beams more practical for applications that don't demand maximum performance. Total cost of ownership including purchase price and replacement frequency should factor into selection decisions.

Beam patterns and optical designs in quartz sealed beams are often optimized for specific applications rather than general-purpose automotive use. Spot beam patterns concentrate light into narrow, long-distance beams for maximum throw—useful for seeing far ahead during off-road racing or aviation approaches. Flood beam patterns spread light across wide areas for close-proximity illumination—valuable for work lighting and peripheral vision. Combination beam patterns provide both distance and width coverage. Aviation quartz sealed beams meet specific FAA beam pattern requirements for landing lights, taxi lights, and other aircraft applications. When selecting quartz sealed beams, match the beam pattern to your specific needs—off-road racing typically uses tight spot beams, while work lighting prefers wide flood coverage.

Common Applications: Aircraft landing lights and aviation lighting, off-road racing and high-performance vehicles, emergency vehicle scene lighting, search and rescue equipment, professional work lighting and industrial applications, high-intensity security and surveillance lighting, anywhere maximum sealed beam performance is required regardless of cost

Key Advantages: 50-100%+ brighter than standard sealed beams, premium quartz glass withstands extreme temperatures, superior thermal shock resistance, exceptional durability under harsh conditions, high-intensity output for demanding applications, aviation and professional-grade performance

Important Considerations: Higher cost than standard/halogen sealed beams, shorter lifespan (100-500 hours), higher power consumption requires adequate electrical system, generates significant heat requiring proper mounting and ventilation
