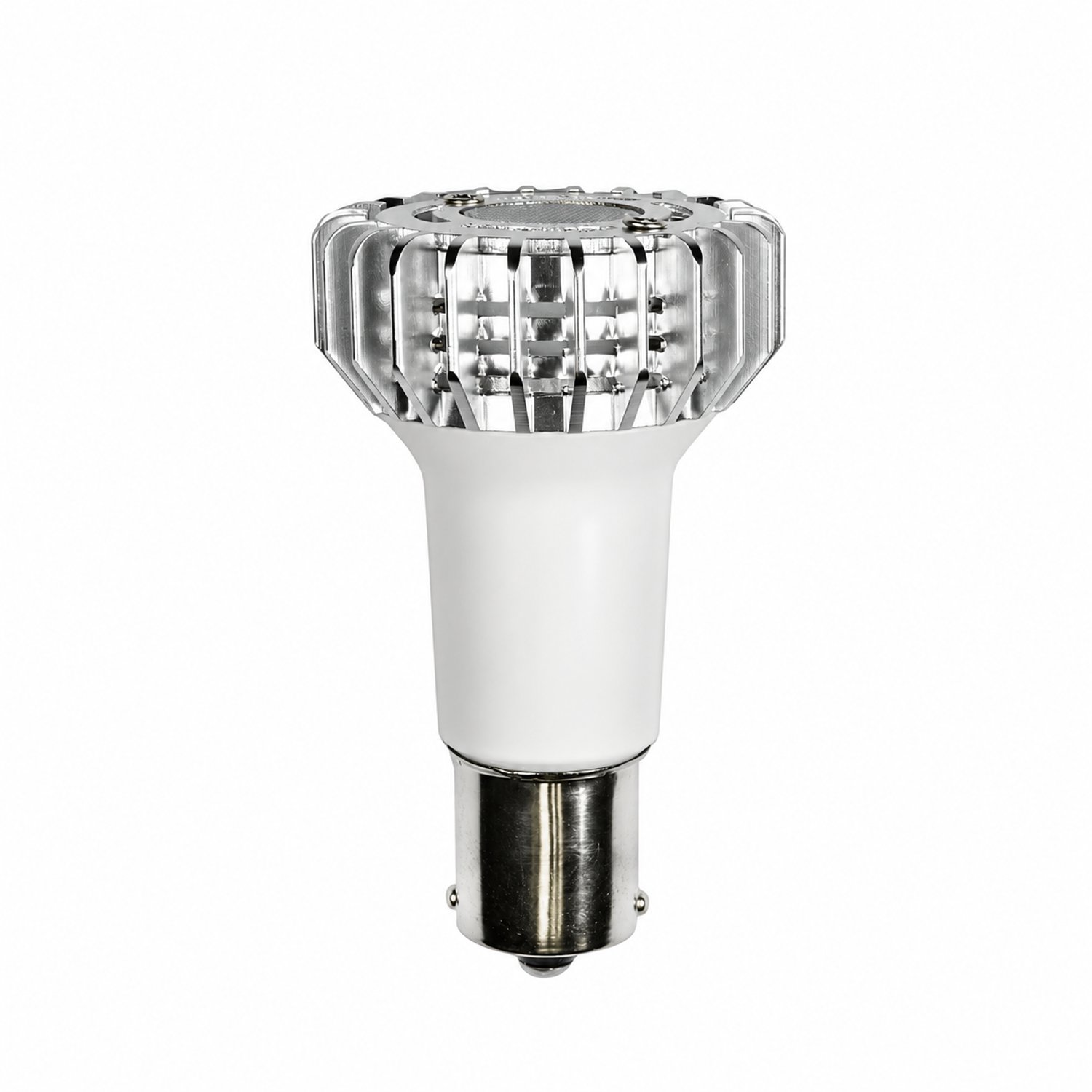

The Norman Lamps LED-1383-3W is a warm white LED elevator cab bulb engineered as a direct, drop-in replacement for the standard 1383 incandescent lamp used in elevator cabin ceiling fixtures. Operating on 13V AC/DC input and drawing only 3W, this LED delivers 240 lumens of comfortable 3000K warm white illumination while providing up to 85% energy savings compared to the 20W incandescent bulb it replaces. The compact R12 reflector shape measures 2.50 inches in length and 1.5 inches in diameter, with a BA15S single contact bayonet base that seats securely into existing 1383 sockets without any fixture modification.

A focused 30 degree flood beam pattern concentrates light output where it is needed inside elevator cabs, while the solid-state LED construction offers strong vibration resistance and instant-on performance suited to the constant motion of elevator service. Rated for 50,000 life hours and certified to CE and RoHS standards, this LED dramatically reduces relamping frequency in hard-to-access elevator ceiling fixtures, making it well suited for commercial buildings, hotels, hospitals, residential towers, and parking garages. The lamp is suitable for damp locations, is not compatible with dimmers, and is sold individually with a case quantity of 10.

• 3W 13V AC/DC LED elevator cab bulb, direct replacement for the 20W 1383 incandescent lamp with approximately 85% energy savings
• 240 lumens of 3000K warm white light with a focused 30 degree flood beam for even elevator cabin illumination
• BA15S single contact bayonet base and R12 reflector shape (2.50 in. length x 1.5 in. diameter) fit standard 1383 sockets
• Rated 50,000 life hours to minimize relamping in hard-to-access elevator ceiling fixtures
• CE and RoHS certified, suitable for damp locations, with strong vibration resistance and instant-on operation
• Non-dimmable LED sold individually; order 10 for a full case

Tags: led-1383-3w, elevator, cabin, leds
