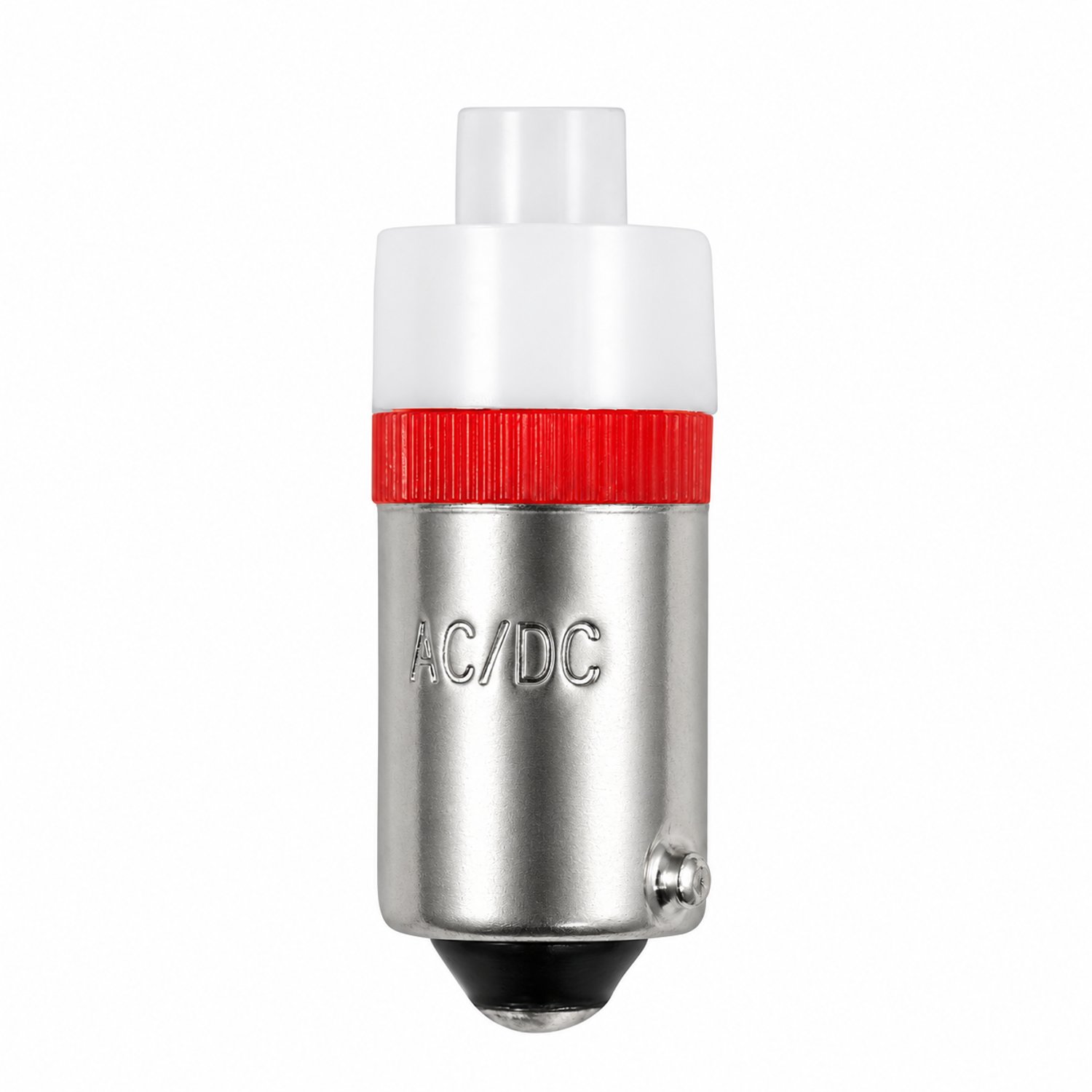

The Norman Lamps LED28MBR-ACDC is a single chip LED miniature lamp engineered as a long-life, low-power replacement for incandescent T3 1/4 bayonet indicator bulbs. Operating on 24-28V AC or DC and drawing only 20mA at 0.50W, this LED produces a bright red output rated at 1000 mcd, making it well suited for panel indicators, annunciator boards, control consoles, and other status-lighting applications where a distinct red signal is required.

The compact tubular T3 1/4 form factor measures 26mm in length by 9mm in diameter and uses a standard BA9S miniature bayonet base for quick drop-in installation into existing sockets. With a 160 degree viewing angle, the LED provides broad visibility from off-axis positions, ensuring the indicator remains clearly readable across a wide field of view. The solid-state single chip LED design generates very little heat, contains no filament to fail from vibration, and delivers a stable red color without the need for a colored lens or filter.

Rated for 50,000 life hours, the LED28MBR-ACDC dramatically reduces maintenance intervals compared with standard incandescent miniature bulbs while cutting power consumption. Dual AC/DC compatibility across the 24-28V range makes it a versatile choice for industrial equipment, aviation ground support, marine panels, transit signaling, and legacy control systems that previously relied on 28V incandescent lamps. Note that this LED is not dimmable.

• Single chip LED miniature lamp with bright red output rated at 1000 mcd for clear panel and indicator visibility
• Wide 24-28V AC/DC operating range at only 0.50W and 20mA, delivering major energy savings over incandescent equivalents
• T3 1/4 tubular shape with BA9S miniature bayonet base for direct replacement of standard 28V incandescent indicator bulbs
• 160 degree viewing angle provides broad off-axis visibility on control panels, annunciators, and status boards
• Long 50,000 life hours reduces maintenance and relamping in industrial, aviation, marine, and transit applications
• Compact 26mm length x 9mm diameter LED lamp; solid-state design resists vibration and is non-dimmable
