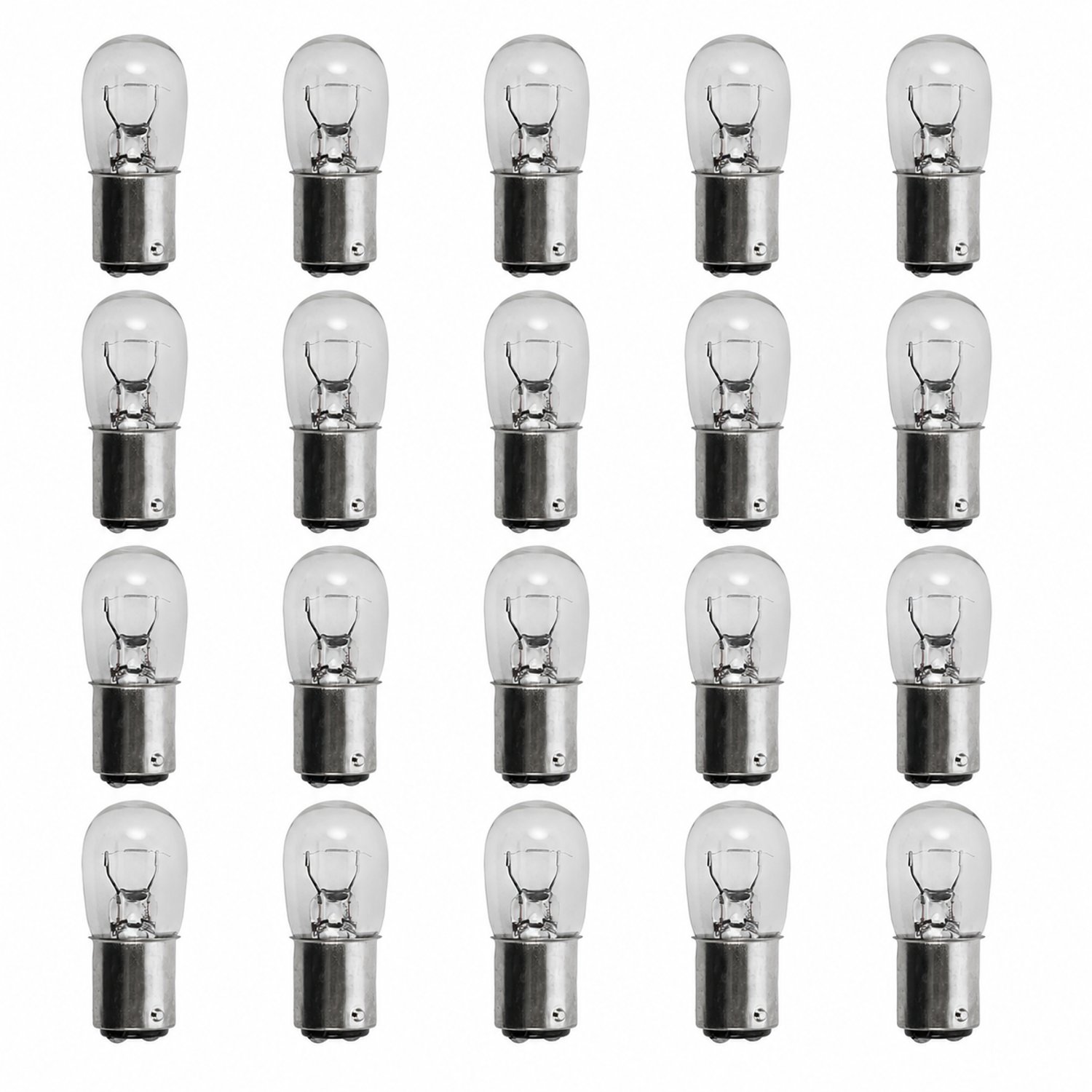

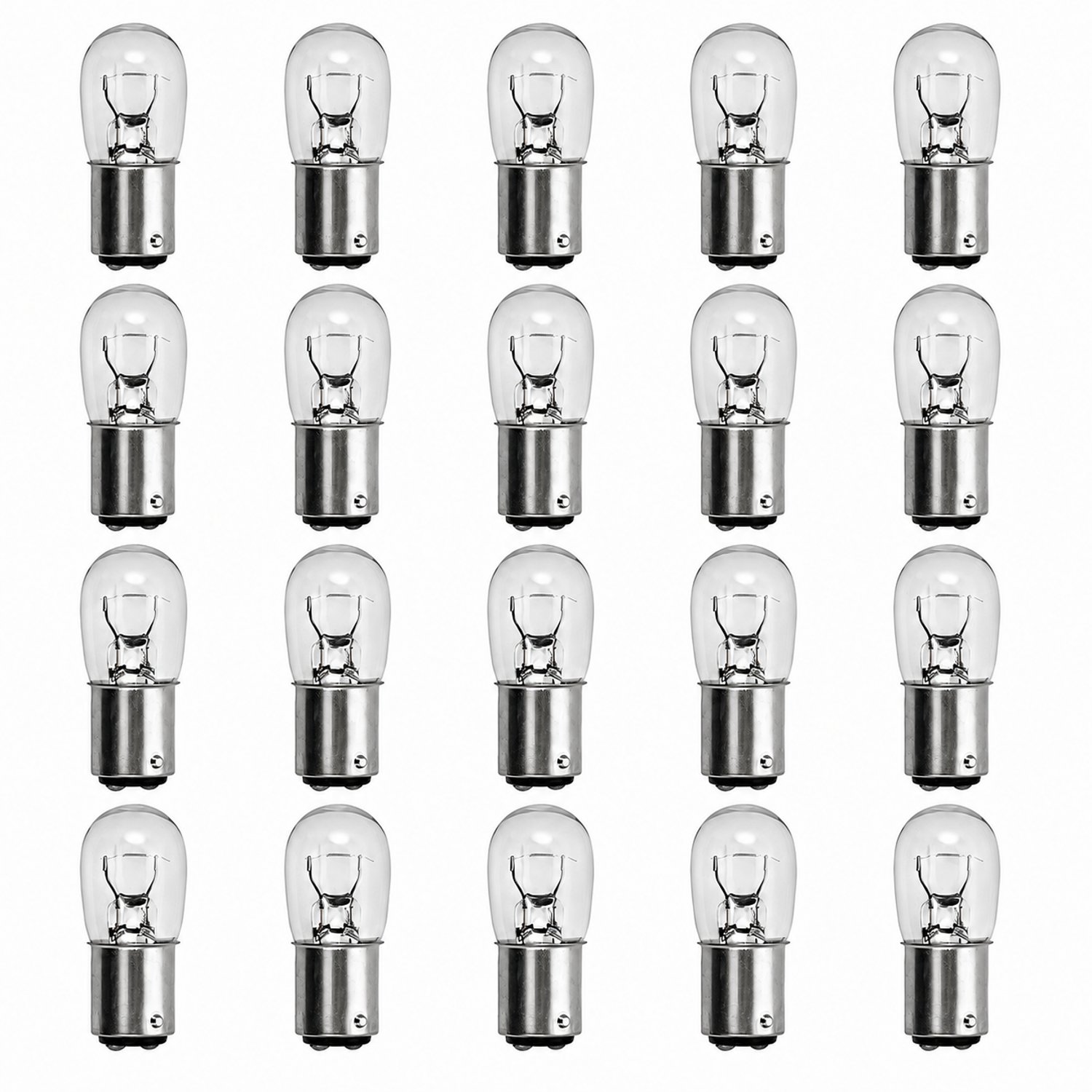

20 Pack 1004 Miniature 12.8V 12W

  • Brand: Norman Lamps
  • Product Code: 1004-20pk
  • UPC Code: 600300331271
  • $15.40 ($0.77 unit price)

✓ 947 in stock

Same-Day Shipping Trusted Since 1985 Secure Checkout Expert Support

The Norman Lamps 1004 is a 12W incandescent miniature bulb designed for reliable performance in 12.8V automotive, RV, and appliance lighting systems. Built around a B6 lamp shape with a double contact bayonet (BA15D) base, this incandescent lamp delivers 15.0 mean spherical candlepower (MSCP) through a C-6 filament with a full 360-degree omnidirectional viewing angle. Rated at 200 life hours, the 1004 is well suited to applications such as trunk lights, license plate lights, interior courtesy lights, and low-voltage appliance fixtures where consistent, dependable incandescent output is required. The bulb measures 1.75 inches in length and 0.75 inches in diameter, making it a compact fit for tight automotive and RV sockets. Operating at 0.94A, this dimmable incandescent lamp is compatible with standard 12V vehicle and RV electrical systems and is cross-referenced to GE1004 and a wide range of equivalent trade lamps from leading manufacturers. This listing includes a pack of 20 bulbs, providing an economical supply for high-use or fleet applications requiring consistent lamp replacement.

  • 12W incandescent miniature bulb, 12.8V, 0.94A with C-6 filament and 15.0 MSCP light output
  • B6 lamp shape with double contact bayonet (BA15D) base — fits trunk lights, license plate lights, RV, and appliance sockets
  • 200 life hours rated average life; 360-degree omnidirectional light distribution
  • Dimmable incandescent design; measures 1.75 in. length x 0.75 in. diameter
  • Cross-references to GE1004 and equivalent lamps from Eiko, Osram, Satco, Sylvania, and others
  • Pack of 20 incandescent miniature bulbs for volume replacement needs

Tags: 1004,

Detailed Specifications
12.8V
12W
Miniature Bulb - Incandescent
B6
1.75 in.
0.75 in.
Double contact bayonet (BA15D)
200
Yes
0.94A
360 Degree
C-6
15.0 mscp.
1004, GE1004
