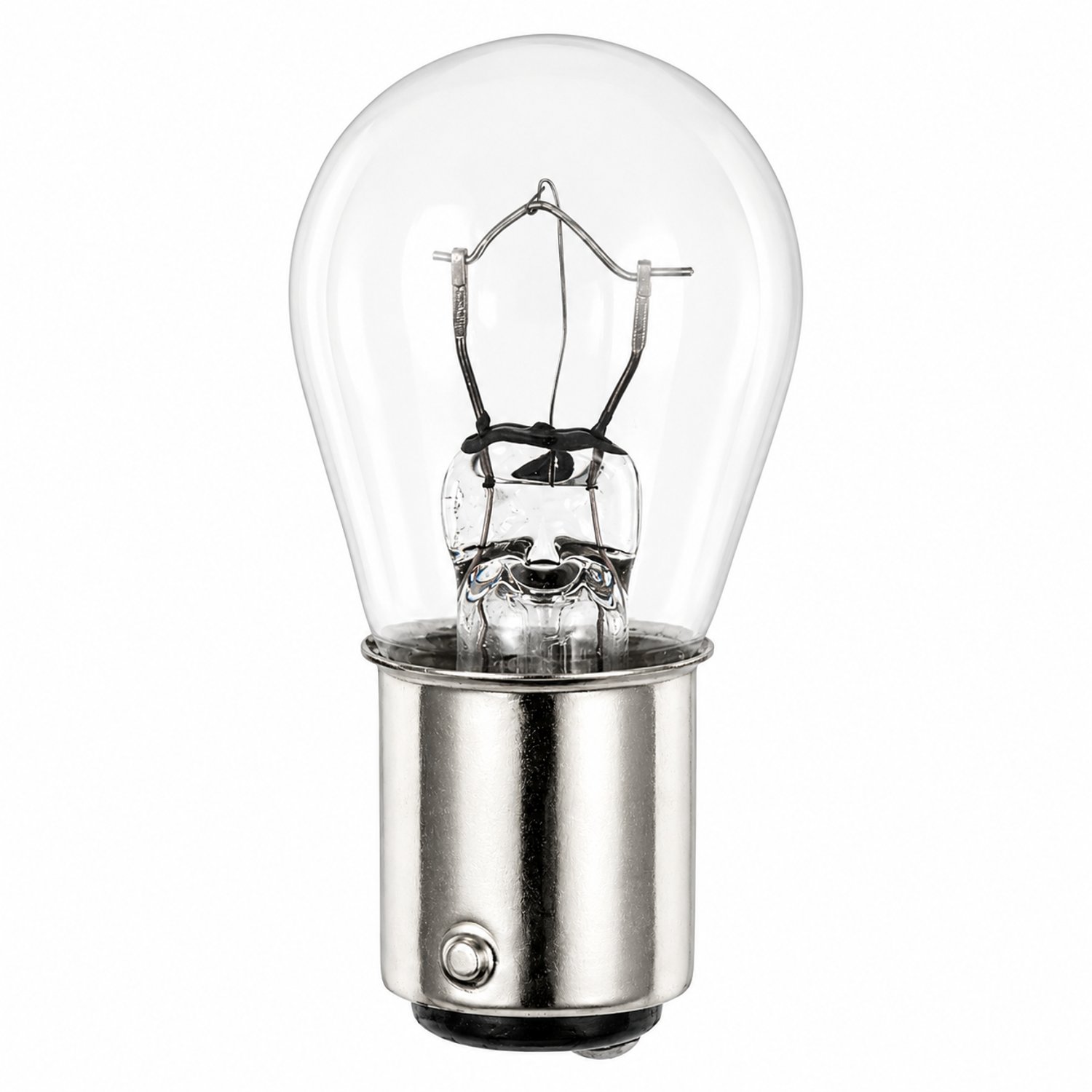

The Norman Lamps 1080 is a 27W incandescent S8 miniature bulb rated at 30V with a current draw of 0.90A, delivering 19 MSCP of light output. The S8 lamp shape features a classic pear-shaped envelope that tapers smoothly to the base, measuring 2.00 inches in length and 1.04 inches in diameter. A clear glass envelope allows the full, warm glow of the incandescent filament to radiate freely in all directions, providing a 360-degree viewing angle.

This incandescent miniature bulb uses a BA15D double contact bayonet base, which features two contacts on the bottom of the base and locking lugs on either side to hold the bulb firmly in its socket. The double contact configuration provides a reliable, secure electrical connection suited to demanding low-voltage systems. The CC-2V supported filament construction contributes to the lamp's extended 5000-hour average rated life, making it well suited for applications where reliability and longevity are important.

Operating at 30V, this S8 incandescent miniature bulb is appropriate for a wide range of specialty low-voltage applications, including industrial controls, signal and indicator lighting, marine equipment, aircraft instrumentation, and other precision low-voltage systems that specify a BA15D base and 30V operating voltage. The bulb is dimmable, allowing compatibility with appropriate low-voltage dimming circuits where light level adjustment is needed. It is sold individually and is also available by the case for volume requirements.

• 27W incandescent S8 miniature bulb, 30V, 0.90A, with 19 MSCP light output and 360-degree viewing angle
• BA15D double contact bayonet base with dual locking lugs for a secure, stable fit in compatible low-voltage sockets
• Clear glass S8 envelope measures 2.00 in. length x 1.04 in. diameter for precise dimensional compatibility
• CC-2V supported filament delivers an average rated life of 5000 hours for reliable, long-term service
• Dimmable incandescent design compatible with appropriate low-voltage dimming circuits
• Suited for industrial controls, signal lighting, marine equipment, aircraft instruments, and other specialty 30V low-voltage applications
