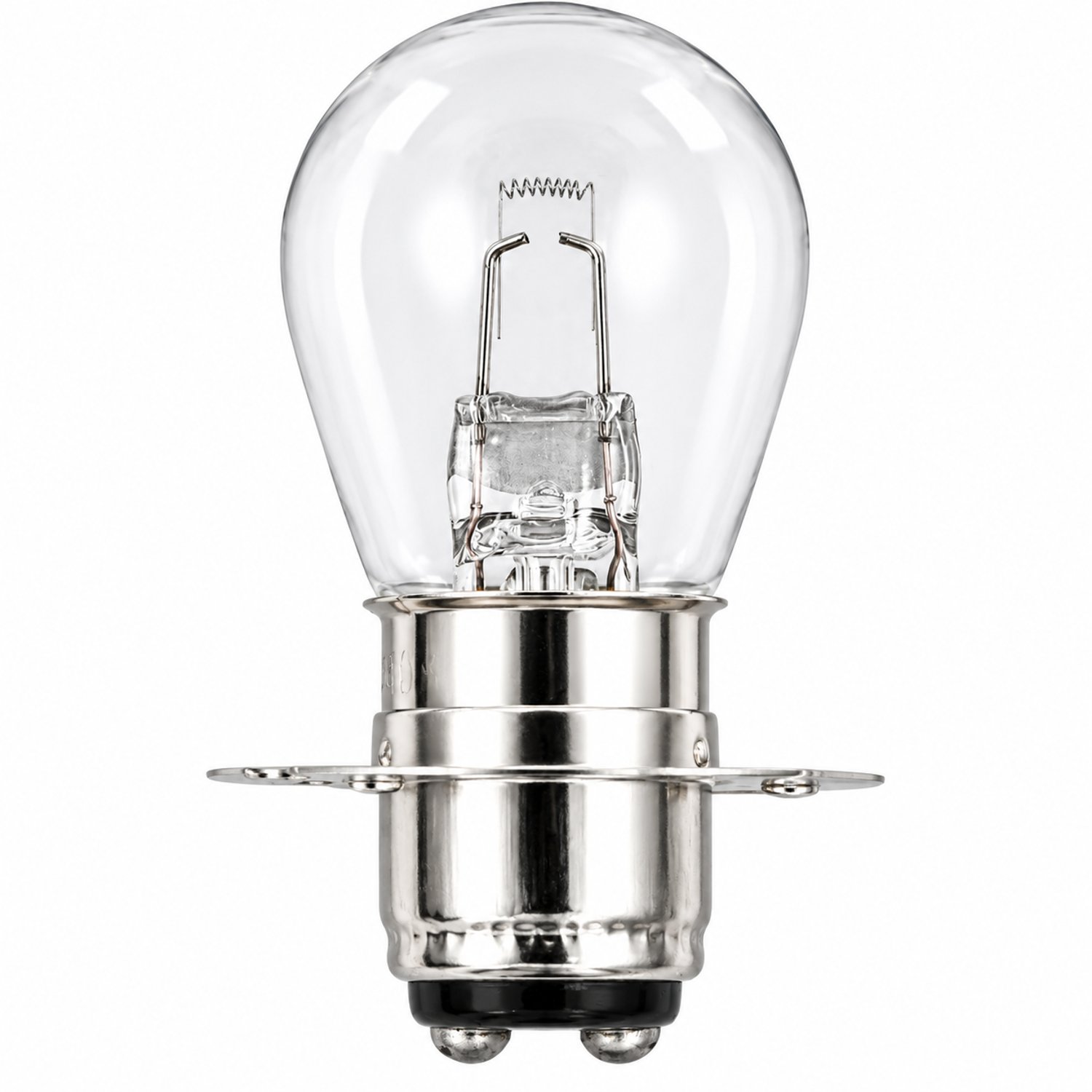

The Norman Lamps 1630 is an 18W incandescent miniature bulb engineered for precision instrument, medical, and scientific optical applications. Operating at 6.5V with a current draw of 2.75A, this S8-shape incandescent lamp delivers 289 lumens of warm white light at a color temperature of 2700K, with a measured output of 23 MSCP. The clear glass envelope and C-6 filament construction provide consistent, stable illumination suited to the exacting positioning requirements of optical instruments such as spectrophotometers and microscopes. The Double Contact Pre-Focus (P15d) base ensures repeatable, precise filament placement within the optical axis of the instrument each time the lamp is seated. At 2.00 in. in overall length and 1.04 in. in diameter, the S8 incandescent bulb fits within compact instrument housings, and a light center length (LCL) of 1.0 in. facilitates accurate alignment with instrument reflectors and condensers. Rated for 100 life hours of service under design operating conditions, this lamp is a widely recognized trade number replacement compatible with instruments from manufacturers including Bausch and Lomb and American Optical. Sold individually.

• 18W S8 incandescent miniature bulb, 6.5V, 2.75A, Double Contact Pre-Focus (P15d) base
• 289 lumens, 2700K warm white, 23 MSCP light output with clear glass envelope and C-6 filament
• 1.0 in. light center length (LCL) for precise optical alignment in microscopes, spectrophotometers, and scientific instruments
• 2.00 in. overall length x 1.04 in. diameter — compact S8 form factor fits standard low-voltage instrument housings
• 100 life hours rated service life; widely recognized trade number 1630 replacement for Bausch & Lomb, American Optical, and equivalent instruments
• Sold individually (each)

Tags: 1630, bulbs
