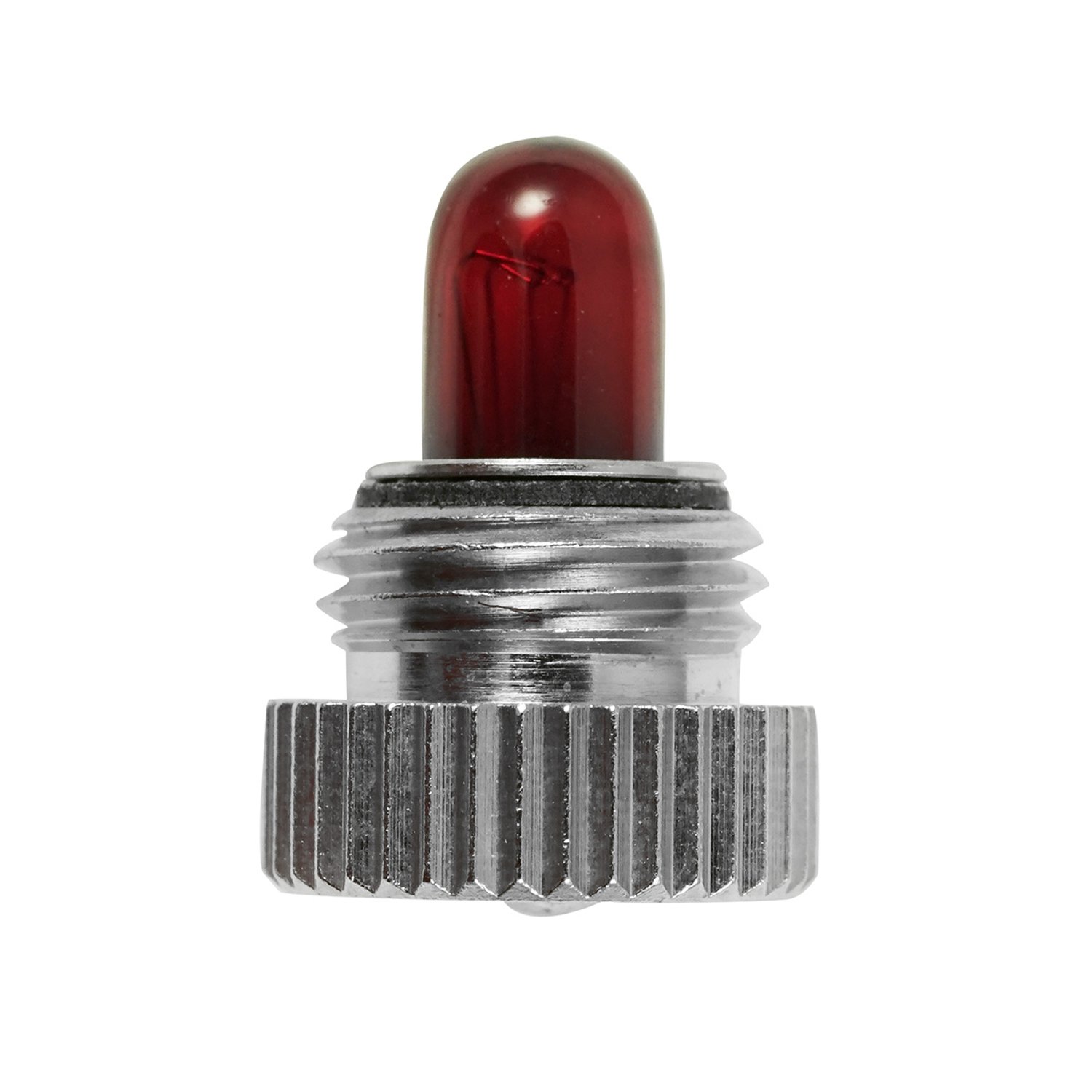

8623-RED Miniature Bulb 28V .04A 1.12W - Special Service Aviation Red Glass
- Brand: Norman Lamps
- Product Code: 8623-RED
- UPC Code: 600300296334
-
$7.95
The Norman Lamps 8623-RED is a T1 1/4 incandescent miniature bulb engineered for demanding military and aviation applications that require a precise, reliable Aviation Red indicator light. Rated at 28V and 1.12W with a 40mA current draw, this incandescent lamp delivers a focused Aviation Red light output across a full 360-degree viewing angle, making it effective for instrument panel indicators, cockpit annunciators, and other special-service equipment where color-coded visibility is critical.
The bulb features a C-2F filament wound for stable low-current operation and is mounted in a knurled brass screw base that provides a secure, vibration-resistant connection in the socket. The compact T1 1/4 tubular form factor measures 0.525 inches in length and 0.168 inches in diameter, allowing it to fit in space-constrained military-grade fixtures and panel indicators. The glass envelope is factory-treated to emit a true Aviation Red color compliant with requirements for special military and aviation service.
With a rated average life of 1000 hours and an incandescent lamp design that is fully compatible with dimmer circuits, the 8623-RED is suited for installations where adjustable intensity is required alongside consistent color rendering. It is sold individually and is also available by the case in quantities of 10 for higher-volume maintenance and procurement needs.
- 28V incandescent T1 1/4 miniature bulb rated at 1.12W and 40mA for special military and aviation service applications
- Aviation Red light output with full 360-degree viewing angle for use in cockpit panels, annunciators, and color-coded indicators
- C-2F filament construction with knurled brass screw base for stable, vibration-resistant performance in demanding environments
- Compact T1 1/4 tubular form factor: 0.525 in. length x 0.168 in. diameter for space-constrained fixtures
- 1000 average life hours; fully dimmable and compatible with standard 28V military and aviation panel dimmer systems
- Sold individually; available in full cases of 10 for maintenance, depot, and procurement use
| Detailed Specifications | |
| Voltage | 28V |
| Wattage | 1.12W |
| Type | Incandescent |
| Lamp Shape | Tubular (T1.25) |
| Length | .525 in. |
| Width | Base width 0.375 in. |
| Diameter | 0.168 in. |
| Base Type | Special Knurled Screw Base |
| Average Life Hours | 1000 |
| Case Quantity | Order 10 for a full case |
| Color Emitted | Aviation Red |
| Is It Dimmable? | Yes |
| Current | 40mA |
| Viewing Angle | 360 Degree |
| Filament | C-2F |
| Light Output | Aviation Red |
| Country of Origin | Japan |
| Features | Special military application |
