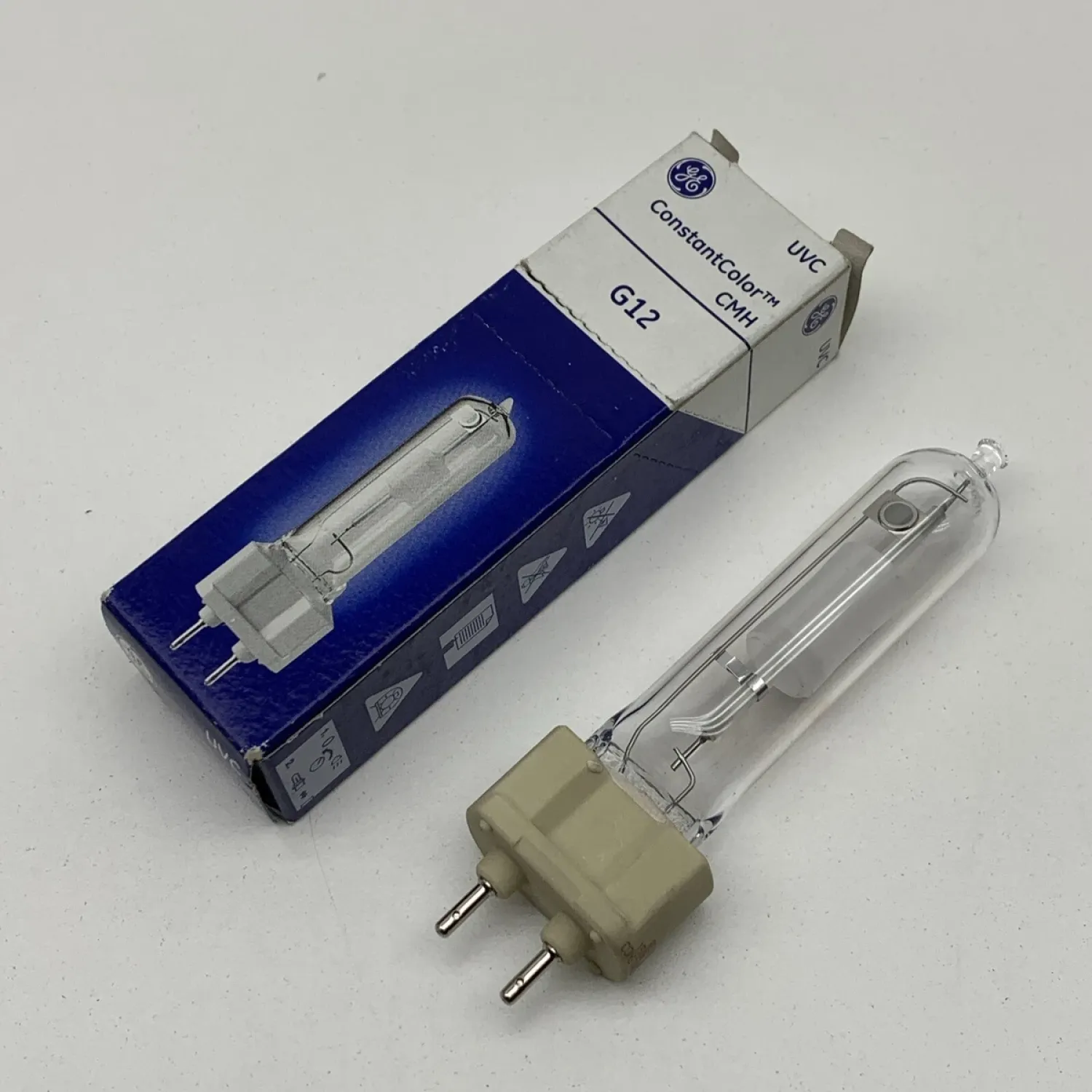

GE Brand: 20016 GENERAL CHARACTERISTICS Lamp type High Intensity Discharge - Ceramic Metal Halide Bulb T6 Base Bi-Pin (G12) Wattage 70 Rated Life 15000 hrs Bulb Material Quartz Lamp Enclosure Type (LET) Enclosed fixtures only LEED-EB MR Credit 65 picograms Hg per mean lumen hour Additional Info UV control PHOTOMETRIC CHARACTERISTICS Initial Lumens 6200 Mean Lumens 4700 Nominal Initial Lumens per Watt 88 Color Temperature 3000 K Color Rendering Index (CRI) 83 ELECTRICAL CHARACTERISTICS Burn Position Universal burning position Warm Up Time to 90% (MAX) 2 min/3 min Hot Restart Time to 90% (MIN) 10 min Hot Restart Time to 90% (MAX) 15 min DIMENSIONS Maximum Overall Length (MOL) 3.5600 in (90.4 mm) Light Center Length (LCL) 2.180 in (55.3 mm) PRODUCT INFORMATION Product Code 20016 Description CMH70TU/830/G12 ANSI Code C139/M139 Standard Package Case Standard Package GTIN 10043168200162 Standard Package Quantity 12 Sales Unit Unit No Of Items Per Sales Unit 1 No Of Items Per Standard Package 12 UPC 043168200165

Tags: cmh70tu/830/g12, (ge, 20016), metal, halide
