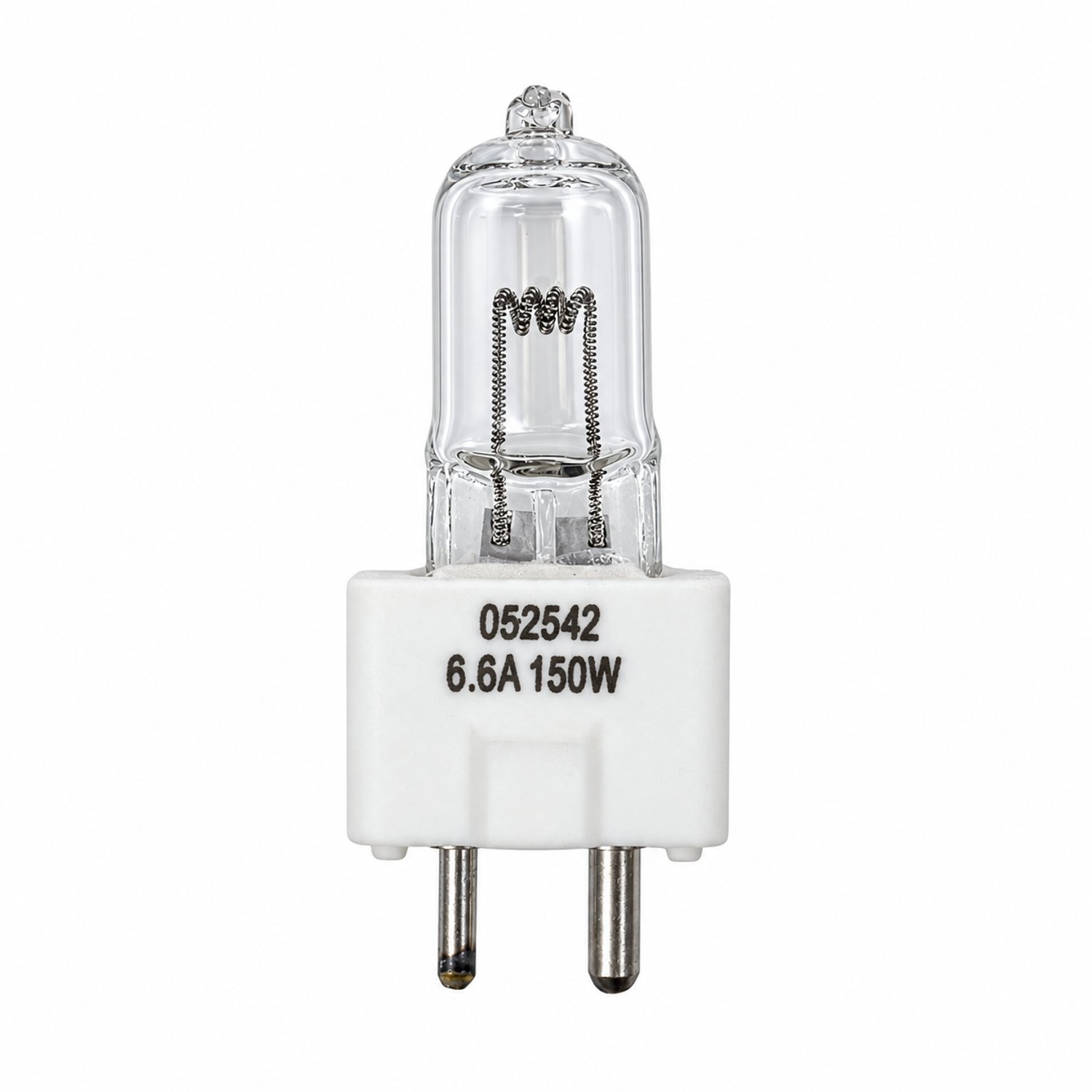

052542 Airfield Bulb 6.6A, 150W (EWR)
- Brand: Norman Lamps
- Product Code: 052542
- UPC Code: 600300327632
-
$12.50
The Norman Lamps 052542 is a 150W tungsten halogen airfield runway lamp designed to replace the ANSI EWR standard bulb used in FAA airport lighting systems. Operating on a 6.6A series current circuit at 22.7V, this halogen lamp delivers 3750 lumens of bright, consistent illumination essential for pilot visibility during approach, taxi, and landing operations.
Built with a tubular T4 clear quartz envelope and a CC-6 oval filament, this halogen bulb provides precise light center alignment for use with prismatic and reflector-based runway fixtures. It is commonly specified for FAA Airport Runway Lighting Designations L-852E/F, L-861SE, L-862, and L-862E, including in-pavement taxiway intersections, medium intensity elevated runway threshold end lights, high intensity elevated edge lights, and runway threshold end lights.
The GZ9.5 two-pin prefocus ceramic base ensures secure, vibration-resistant mounting and repeatable filament positioning inside airfield fixtures. Rated for 1000 average life hours and fully dimmable across the constant-current regulator range, this halogen airfield lamp is a direct replacement for EWR-coded bulbs from major manufacturers used throughout commercial, military, and heliport airfield lighting installations.
- 150W tungsten halogen airfield runway lamp replaces ANSI EWR coded bulbs in FAA-approved airport lighting fixtures
- 6.6A constant-current operation at 22.7V for series-wired runway, taxiway, and approach lighting circuits
- 3750 lumens output with a CC-6 oval filament for precise beam control and consistent light center positioning
- GZ9.5 two-pin prefocus ceramic base provides vibration-resistant mounting and repeatable filament alignment
- T4 tubular clear quartz halogen envelope measuring 2.18 in. length by 0.54 in. diameter
- 1000 average life hours, fully dimmable, suited for L-852E/F, L-861SE, L-862, and L-862E fixture designations
| Detailed Specifications | |
| Voltage | 22.7V |
| Wattage | 150W |
| Type | Airfield Runway Lamp |
| Lumens | 3750 |
| Replaces | EWR |
| Lamp Shape | Tubular |
| Length | 2.18 in. (55mm) |
| Width | .54 in. (13.5mm) |
| Base Type | GZ9.5 |
| Average Life Hours | 1000 |
| Case Quantity | Order 10 for a full case |
| Is It Dimmable? | YES |
| Current | 6.6A |
| Filament | CC-6 Oval |
| Cross Reference | 052542 |
