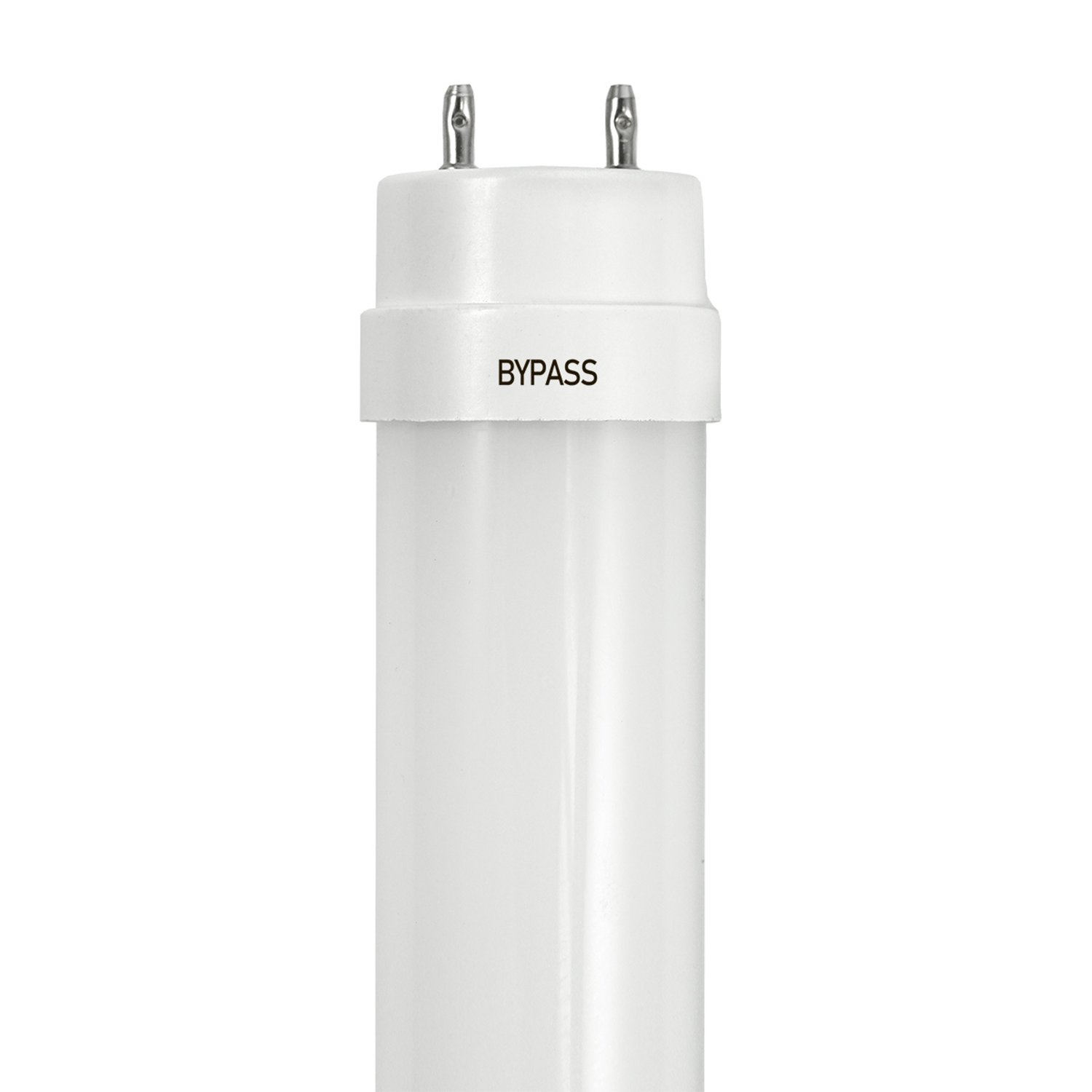

LED-T814-18DBP4 Type-B 120-277V
- Brand: Norman Lamps
- Product Code: LED-T814-18DBP4
- UPC Code: 600300323344
-
$9.50
Available Options:
Voltage: 120-277V, Wattage: 14W, Type: LED T8 Type-B Tube, Color Temp (Kelvin): 4000K, Lumens: 1800, Replaces: 32W, T8 Fluorescent Tube, Certifications: ETL, Intertek (4008363), Length: 48.0 in., Diameter: 1.00 in., Base Type: G-13 (Bi-Pin), Average Life Hours: 50,000, Case Quantity: Order 30 for a full case, Color Emitted: Cool White, Is It Dimmable? No, Viewing Angle: 300 Degree. Operates on direct voltage input where ballast bypass is the desired format. Direct voltage input range anywhere from 120VAC - 277VAC. Input voltage must be applied on both ends at the designated live (L) and neutral (N) pins (double end AC power input only).
The Bypass™ T8 is a cost-effective retrofit LED tube that outperforms all other T8 LED technology.
| Detailed Specifications | |
| Voltage | 120-277V |
| Wattage | 14W |
| Type | LED T8 Type-B Tube |
| Color Temp (Kelvin) | 4000K |
| Lumens | 1800 |
| Replaces | 32W T8 Fluorescent Tube |
| Certifications | ETL, Intertek, DLC Listed |
| Length | 48.0 in. |
| Diameter | 1.00 in. |
| Base Type | G-13 (Bi-Pin) |
| Average Life Hours | 50,000 |
| Case Quantity | Order 25 for a full case |
| Color Emitted | Cool White |
| Is It Dimmable? | No |
| Viewing Angle | 300 Degree |
| Features | Direct Input Compatible |
