The Norman Lamps LED-T838-2P-SEL Split-8 Series is a versatile 8 foot LED tube engineered as a direct retrofit for 96 inch T8 and T12 fluorescent tubes in commercial, industrial, and institutional fixtures. This innovative two-piece design connects two 4 foot LED sections to form a complete 8 foot tube, simplifying shipping, handling, and installation in tight ceiling cavities where a single rigid 96 inch lamp is difficult to maneuver.

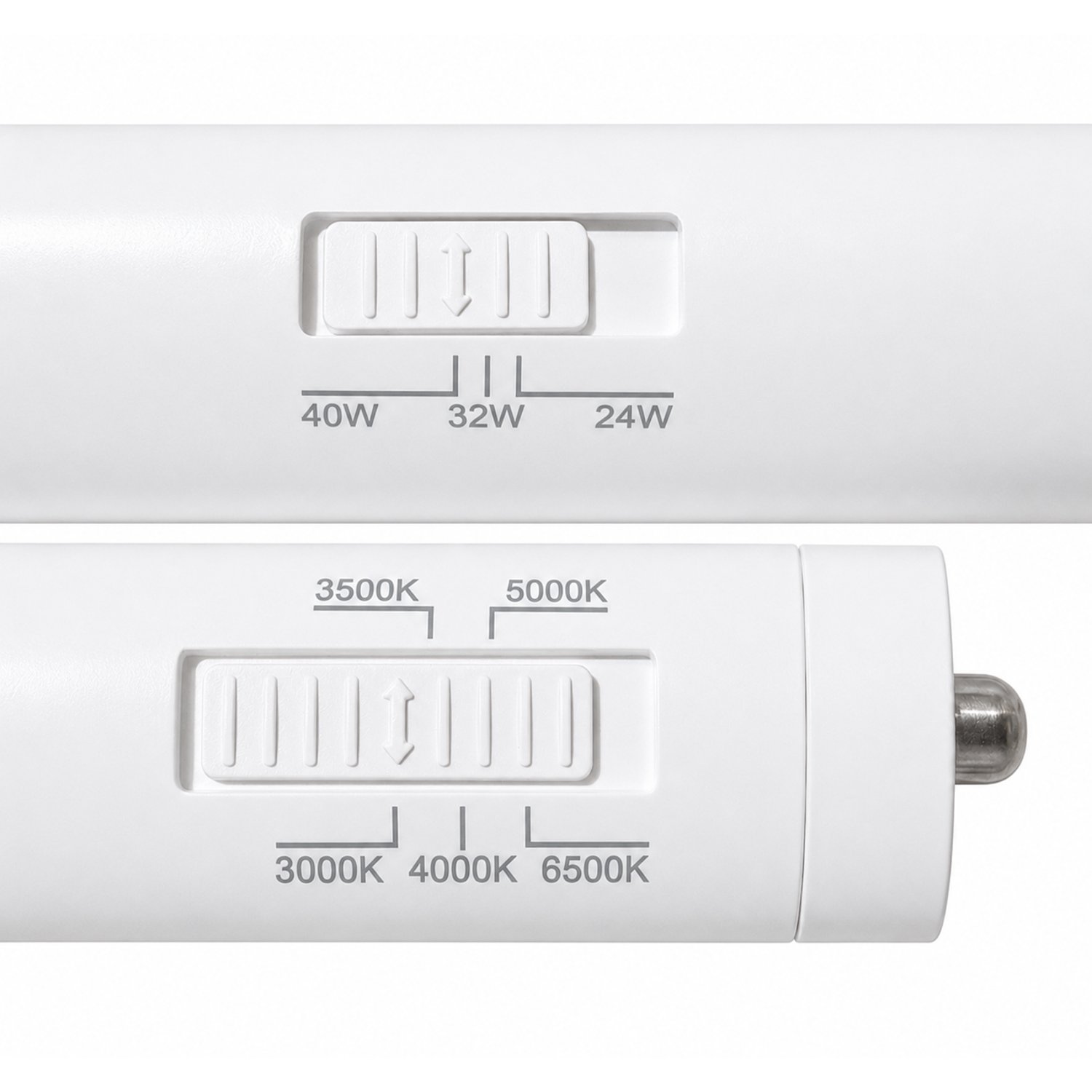

Field-selectable wattage allows the installer to choose 24W, 32W, or 40W output, delivering 3,500 lumens, 4,500 lumens, or 5,500 lumens to match the brightness required for the application. A selectable correlated color temperature switch provides five lighting options including 3000K, 3500K, 4000K, 5000K, and 6500K, covering everything from warm white ambiance to crisp daylight task lighting. A CRI greater than 82 ensures accurate color rendering, while the 280 degree viewing angle distributes light evenly across the workspace.

This LED tube ships with both FA8 single pin and R17d high output recessed double contact end caps, allowing one SKU to retrofit either standard T8 single-pin or T12 H.O. fixtures. Operation is ballast bypass direct wire across a universal 120VAC to 277VAC input at 50/60Hz, eliminating the legacy ballast for greater efficiency and fewer maintenance failures. Rated for 50,000 life hours, the LED platform delivers substantial energy savings versus fluorescent technology while removing mercury from the lamp stream. DLC Listed, UL, CE, and RoHS certifications make the LED-T838-2P-SEL suitable for utility rebate programs and code-compliant installations in warehouses, parking garages, manufacturing floors, gymnasiums, and retail spaces.

• Two-piece 8 foot LED T8 tube design connects two 4 foot sections to form a full 96 inch lamp for easier shipping, handling, and installation in confined spaces
• Power selectable LED output of 24W, 32W, or 40W producing 3,500lm, 4,500lm, or 5,500lm to match the brightness required for each fixture
• CCT selectable across 3000K, 3500K, 4000K, 5000K, and 6500K with CRI greater than 82 and a 280 degree viewing angle for even, accurate illumination
• Includes both FA8 single pin and R17d H.O. recessed double contact end caps so one LED tube fits T8 single-pin or T12 high-output fixtures
• Ballast bypass direct wire operation on universal 120VAC to 277VAC input at 50/60Hz with 560mA drive current for plug-and-play retrofit after ballast removal
• Rated for 50,000 life hours and carries DLC, UL, CE, and RoHS certifications for rebate eligibility and code-compliant commercial installations
