82 Miniature Bulb 6.5v
- Brand: Norman Lamps
- Product Code: 82
- UPC Code: 600300327182
-
$4.95

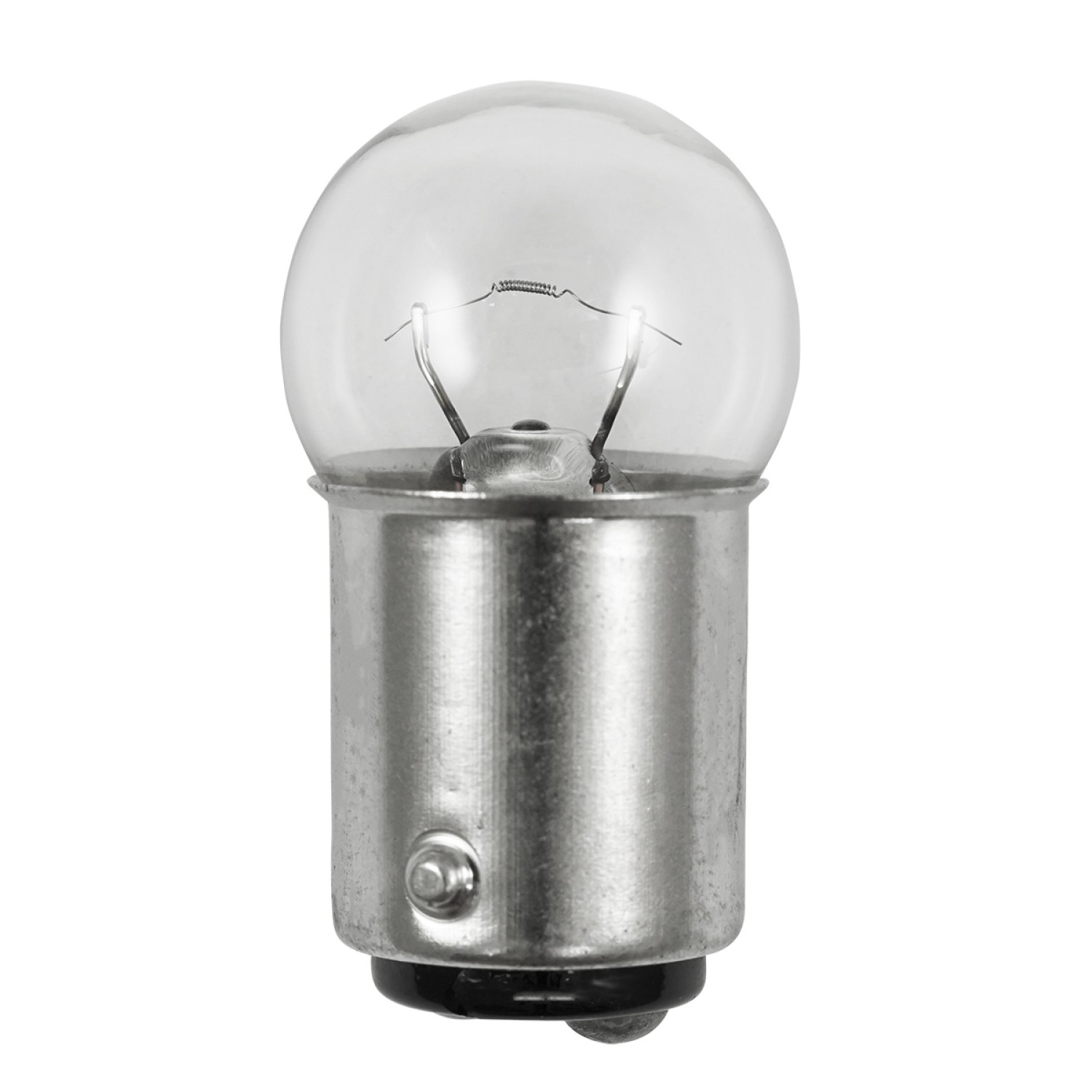

The 82 Miniature Bulb is a G6 incandescent lamp designed for exit and emergency lighting applications that use a BA15D double contact bayonet base. It operates at 6.5V and 1.02A, with a rated life of 500 hours and a compact 1.44 in. length by 0.75 in. diameter form factor. Web and spec-sheet references for matching 82 lamps support a 6.63W rating and approximately 6CP/6.0 MSCP light output, making this a direct-fit replacement for compatible low-voltage miniature fixtures.
- Incandescent G6 miniature bulb for exit and emergency lighting
- 6.5V, 1.02A, approximately 6.63W
- BA15D double contact bayonet base
- Rated life of 500 hours
- Compact size: 1.44 in. length x 0.75 in. diameter
- Approximate light output: 6.0 MSCP
| Type | File Information |
 |
Norman catolog pg 30.pdf File Size - 2.11MB |
| Detailed Specifications | |
| Voltage | 6.5V |
| Wattage | 6.63W |
| Type | G6 Miniature Bulb |
| Length | 1.44 in. |
| Diameter | 0.75 in. |
| Base Type | BA15D (double contact bayonet) |
| Average Life Hours | 500 |
| Case Quantity | Order 10 for full case |
| Current | 1.02A |
