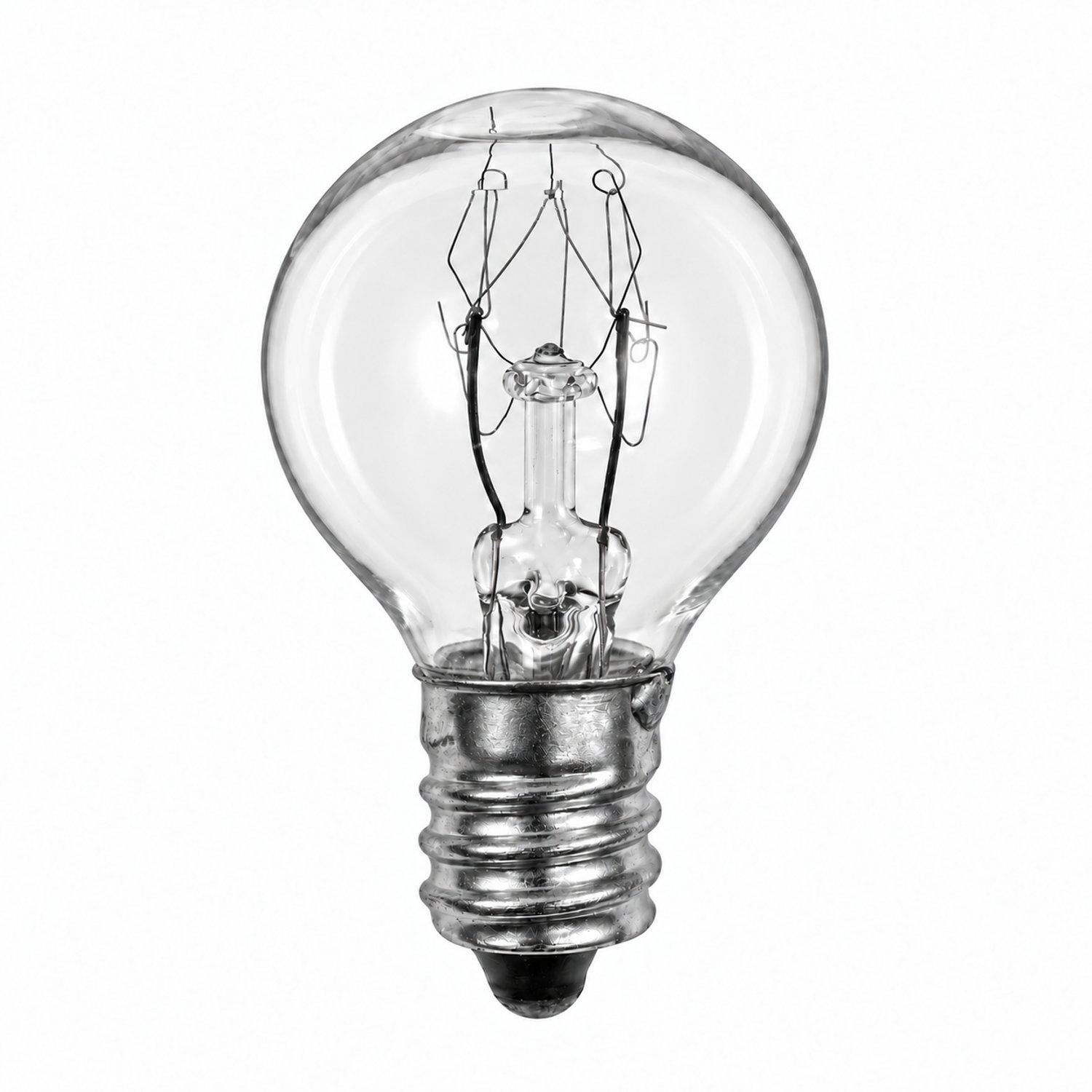

The Norman Lamps 5G6-120V-CS is a 120V, 5W incandescent miniature bulb built around a compact G6 globe envelope measuring 1.38 inches in length and 0.75 inches in diameter. It draws 0.042A at rated voltage and delivers a light output of 5.0 MSCP (mean spherical candlepower), the standard photometric rating method for incandescent miniature lamps in this class. The C-5A filament construction is well suited to the demands of line-voltage miniature incandescent service, and the clear glass envelope allows full, unfiltered light output in all directions.

Fitted with an E12 candelabra screw base, the 5G6-120V-CS installs easily into any fixture or socket accepting the standard E12 thread pattern. As an incandescent lamp, it operates at a warm color temperature of approximately 2700K with a color rendering index of 100, reproducing colors with complete accuracy. It reaches full brightness the moment power is applied, with no warm-up period, and is fully dimmable with compatible dimmer controls.

Rated for 2500 average life hours, this incandescent miniature globe is designed for applications where a compact 120V line-voltage lamp with a candelabra base is required. Typical uses include indicator lighting, appliance lighting, decorative fixtures, specialty instrument housings, sign lighting, and other enclosed or open candelabra-base sockets that call for a small-diameter G6 globe form factor. The bulb is sold individually, and a full case consists of 10 units.

• 120V incandescent miniature G6 globe bulb — 5W, 0.042A, 5.0 MSCP light output in a compact 1.38 in. x 0.75 in. envelope
• E12 candelabra screw base for easy drop-in installation in standard candelabra sockets and fixtures
• C-5A filament construction rated for 2500 average life hours of incandescent miniature service
• Clear glass envelope delivers full, unobstructed omnidirectional light output at approximately 2700K with CRI 100
• Fully dimmable — instant-on with no warm-up delay; compatible with standard 120V dimmer controls
• Sold individually; order 10 units for a full case — suitable for indicators, appliances, decorative fixtures, and specialty sign sockets

Tags: 5g6-120v-cs, bulbs
