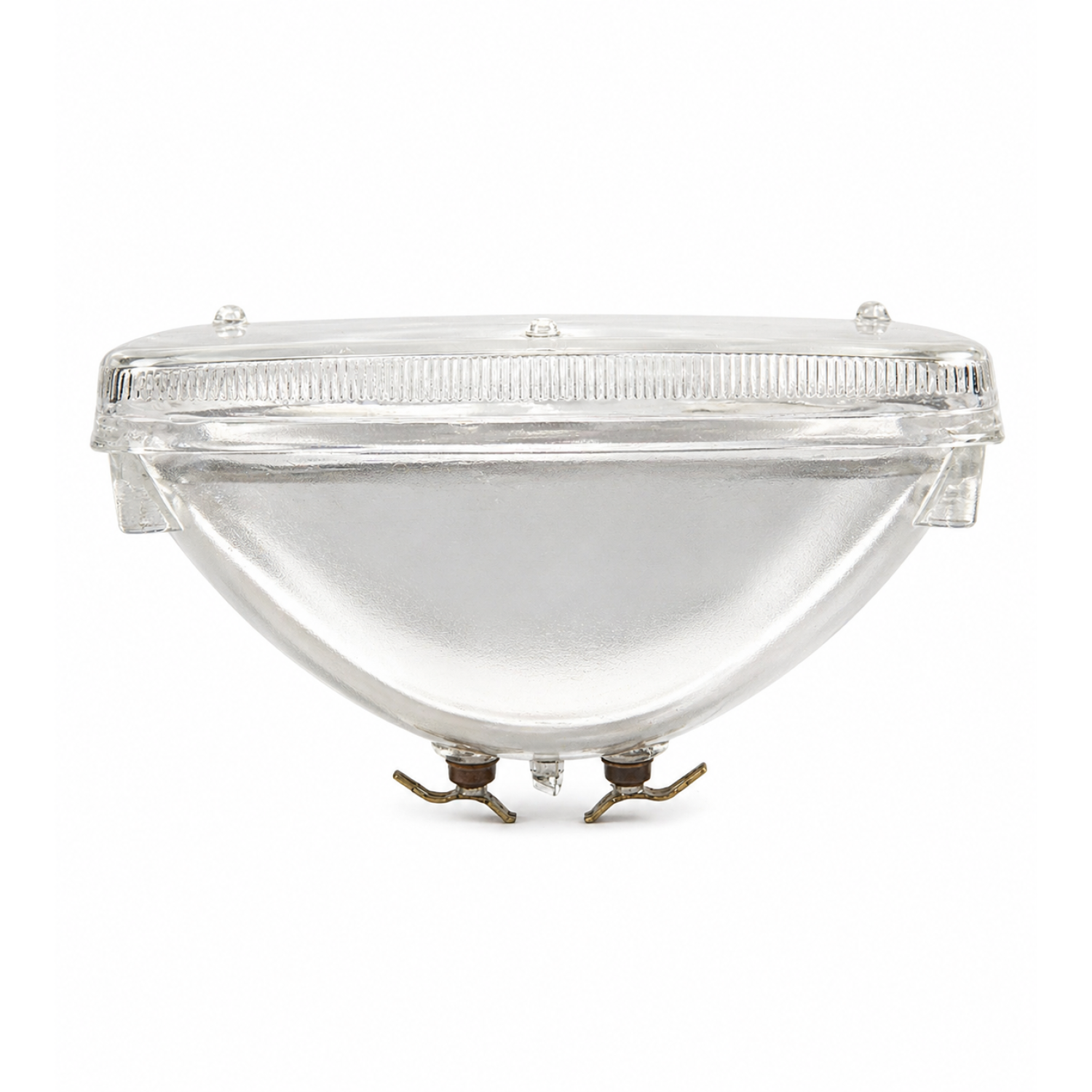

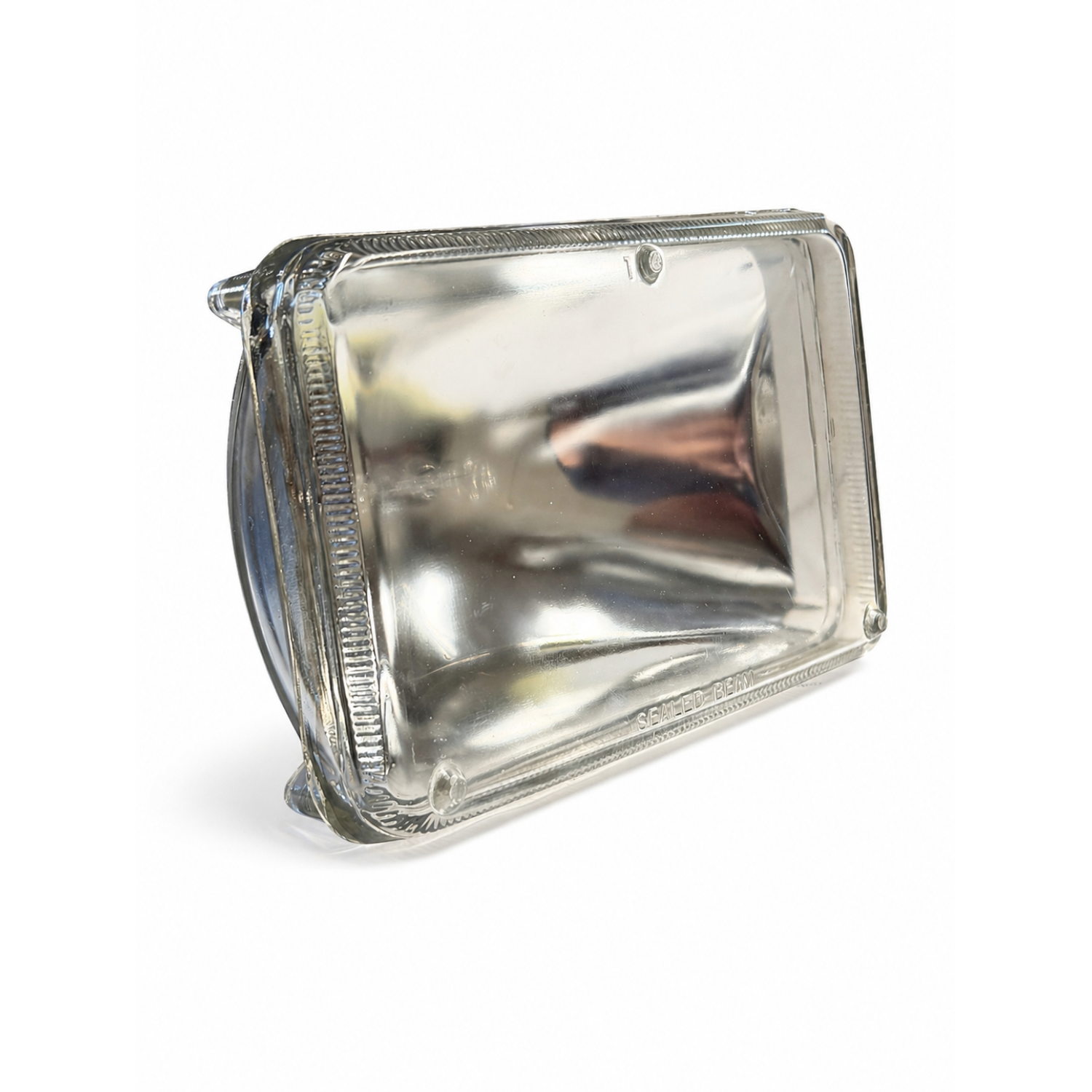

The H7935-1 Sealed Beam headlamp delivers reliable forward lighting for 12V automotive, heavy equipment, and industrial vehicle applications. This 50W sealed beam operates at 12.8V and draws 3.9 amps, producing a powerful maximum beam candlepower of 175,000 MBCP with an effective range of 1,275 feet (386M) at 1 lux. The rectangular glass measures 165mm x 108mm (6.5" x 4.25") with a maximum overall diameter of 5.75" (146mm) and overall length of 4.53" (115mm), making it a direct fit for standard rectangular sealed beam housings. A precision C-6 filament provides a focused horizontal beam spread of 6.5° and vertical spread of 3.5° at 10%, ideal for long-distance road illumination. Two slip-on terminals allow for fast, tool-friendly installation and replacement. With an average rated life of 100 hours, the H7935-1 sealed beam is engineered for durable, high-output performance in demanding driving conditions.

• 50W, 12.8V sealed beam lamp with 3.9A draw for 12V systems
• Rectangular glass: 165mm x 108mm (6.5" x 4.25"), 5.75" max diameter, 4.53" overall length
• C-6 filament delivers 175,000 MBCP with 1,275 ft (386M) range at 1 lux
• Beam spread: 6.5° horizontal, 3.5° vertical at 10% for focused long-range projection
• 2 slip-on terminals for quick, tool-free wiring connection
• 100 hours average rated life for dependable automotive and industrial use

Tags: H7935-1, GE 47460, GE 14892, Jabsco 18753-0455, Spot Lamp, Spotlamp, 98040-0555, 187530455, ITT 413081
