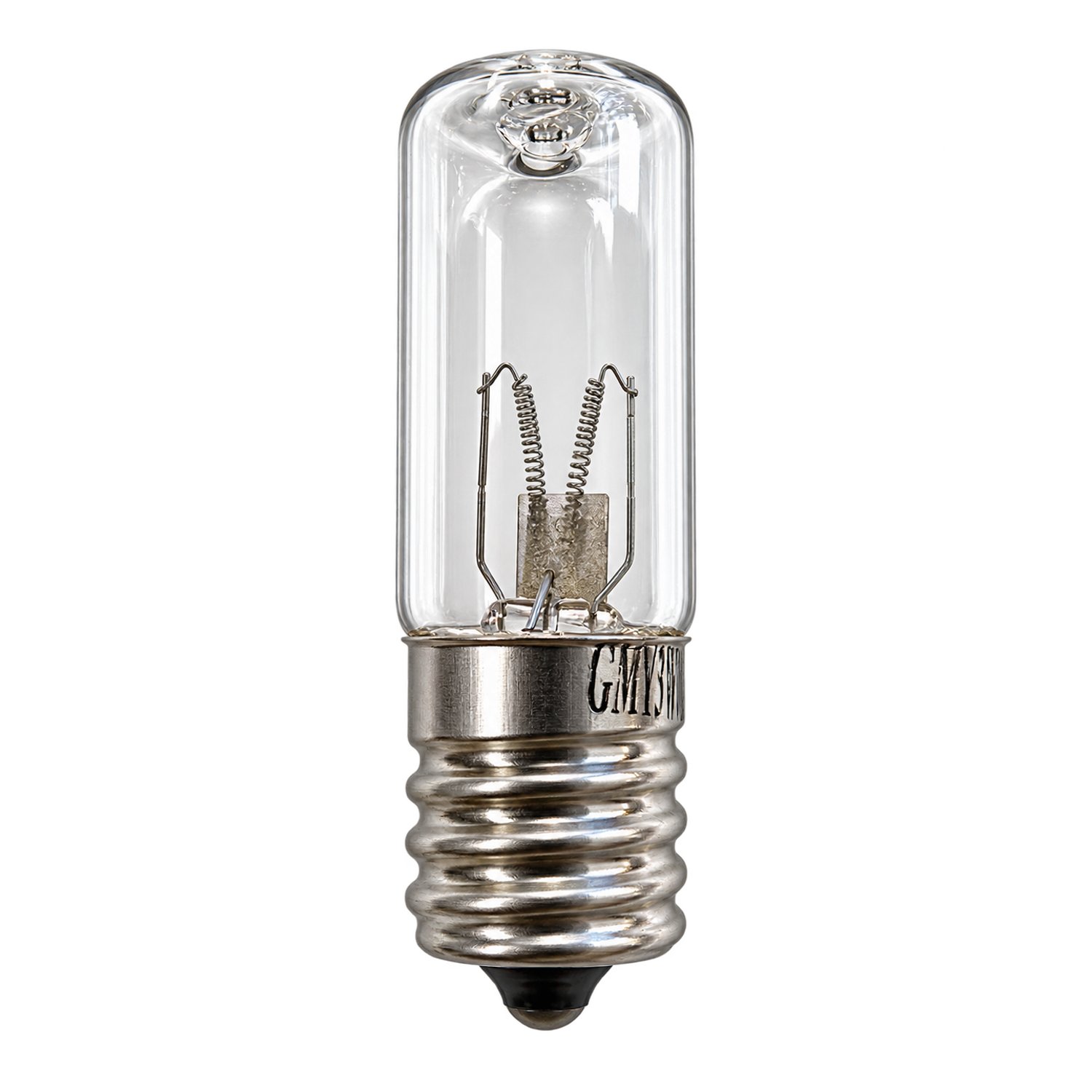

The Norman Lamps GTL3 Germicidal UV Tube delivers short-wave ultraviolet output peaking at 253.7nm for effective disinfection of air, water, and surfaces. This low-pressure mercury-arc germicidal lamp emits radiation peaking at 253.7nm (UV-C), which is highly effective to inactivate microorganisms such as algae, bacteria, viruses, yeast and mold. Compact and purpose-built, this 3W germicidal UVC tube operates at 10.5V on 0.300A current and produces 0.16W of UV output, making it a reliable replacement lamp for sterilizers, water treatment systems, HVAC coils, and small disinfection appliances.

Engineered in a T6 tubular shape with clear UV-transmitting soft glass, the GTL3 measures 2.15 inches in overall length and 0.63 inches in diameter, fitting standard E17 intermediate screw base sockets. Germicidal lamps allow 253.7nm UV-C radiation from the mercury discharge to pass through the glass thus penetrating and inactivating the DNA of most micro-organisms. The CC-2V inverted filament supports stable preheat starting and consistent UVC output across the lamp's 3,000 life hours.

This germicidal UV tube requires an external ballast to operate and is a direct replacement for Ushio 3000022 and equivalent GTL3 lamps. For use in sterilizers and air and water purifiers, this is an ultraviolet C (253.7 nm wavelength) bulb for use in sterilization, water and air purification and surface disinfection. It is used in the forming and disinfection of contact lenses and in UV sterilizers for fish aquariums and ponds. Order 10 for a full case.

• Germicidal UV tube emitting short-wave UVC at 253.7nm peak wavelength for effective sterilization and disinfection
• 3W power draw at 10.5V input with 0.300A current and 0.16W total UV output
• T6 tubular shape with E17 intermediate screw base, 2.15 in. length and 0.63 in. diameter for compact fixture compatibility
• Low-pressure mercury-arc germicidal technology inactivates bacteria, viruses, mold, yeast, and algae in air and water
• 3,000 average life hours with CC-2V inverted filament for stable UVC output throughout lamp life
• Direct replacement for Ushio 3000022; external ballast required for operation
