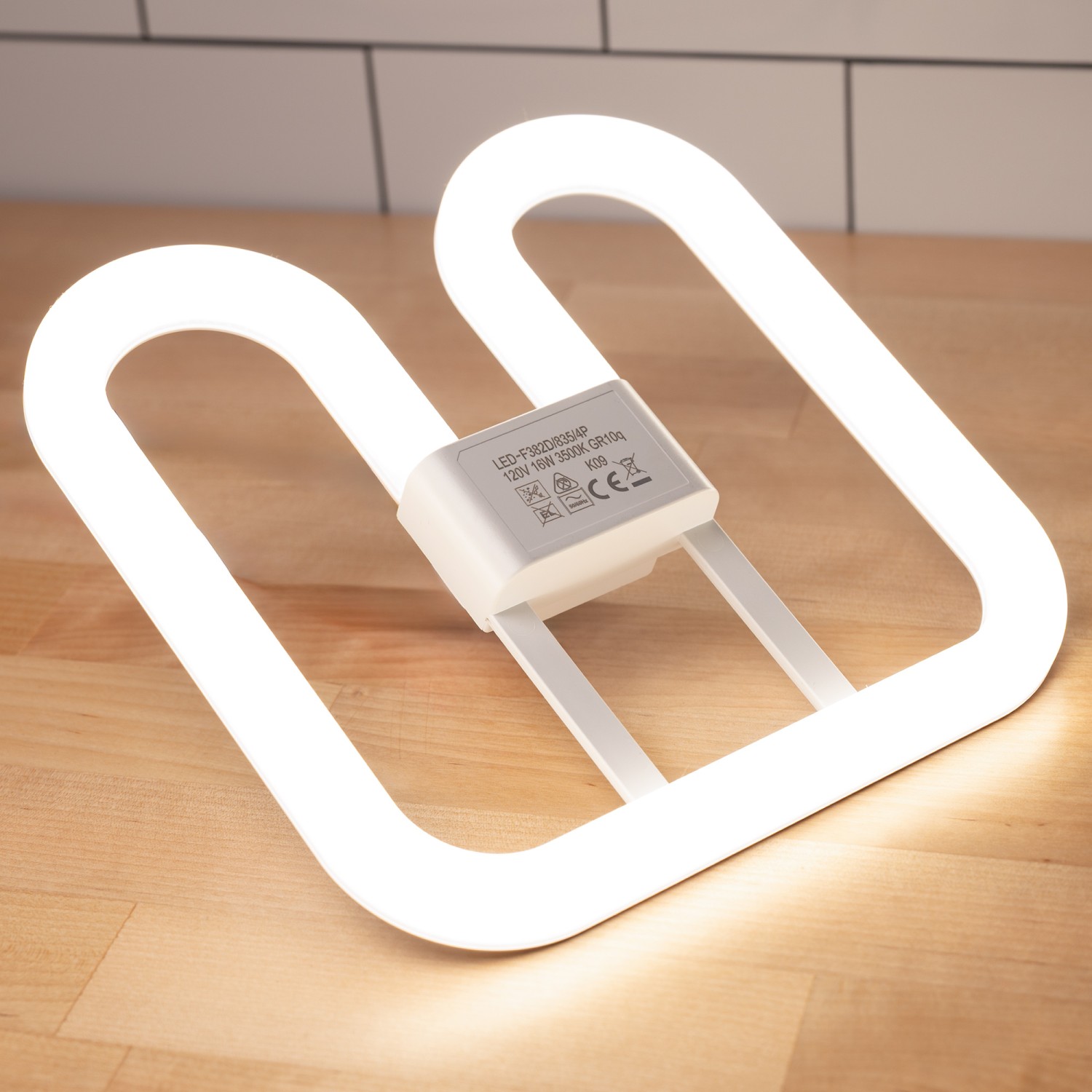

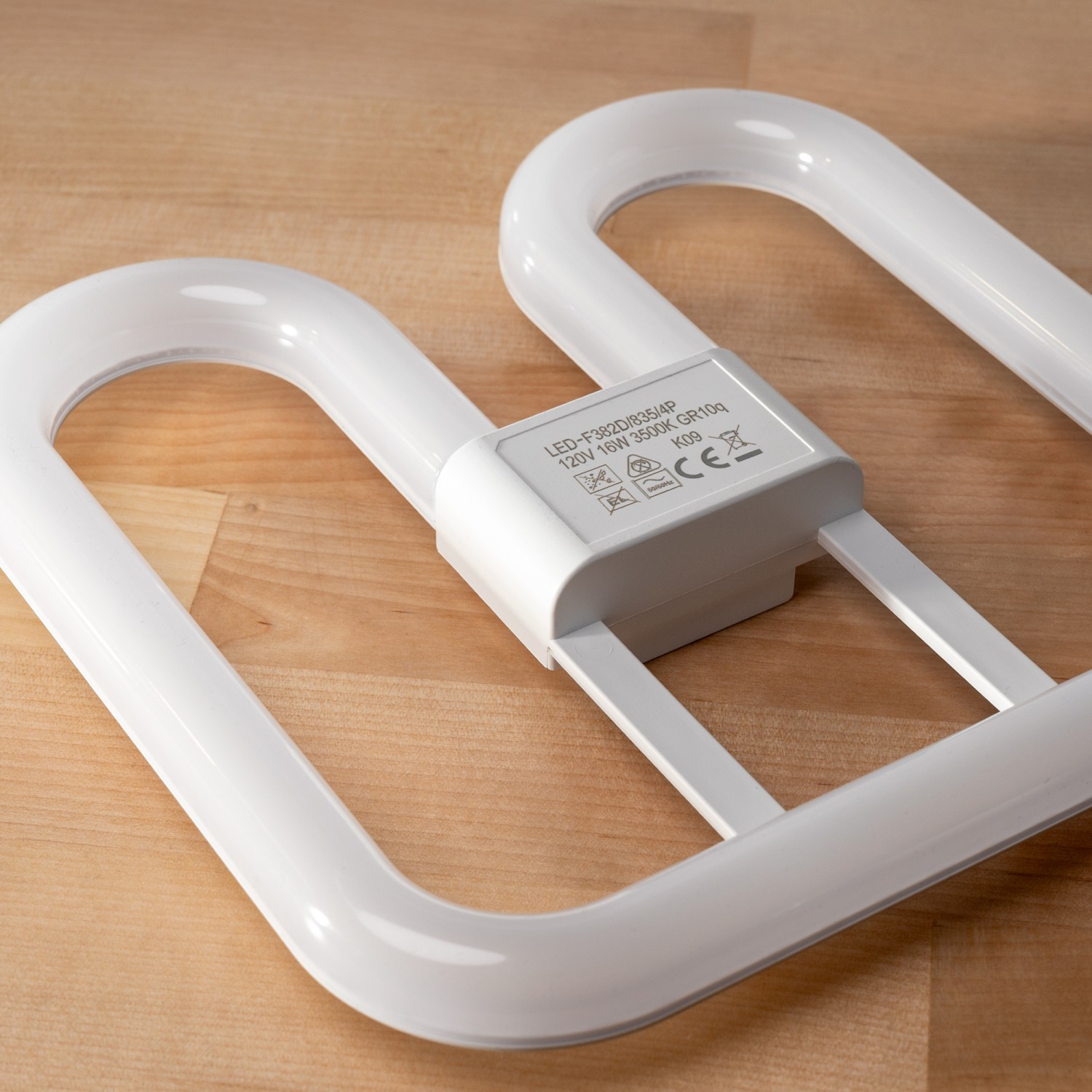

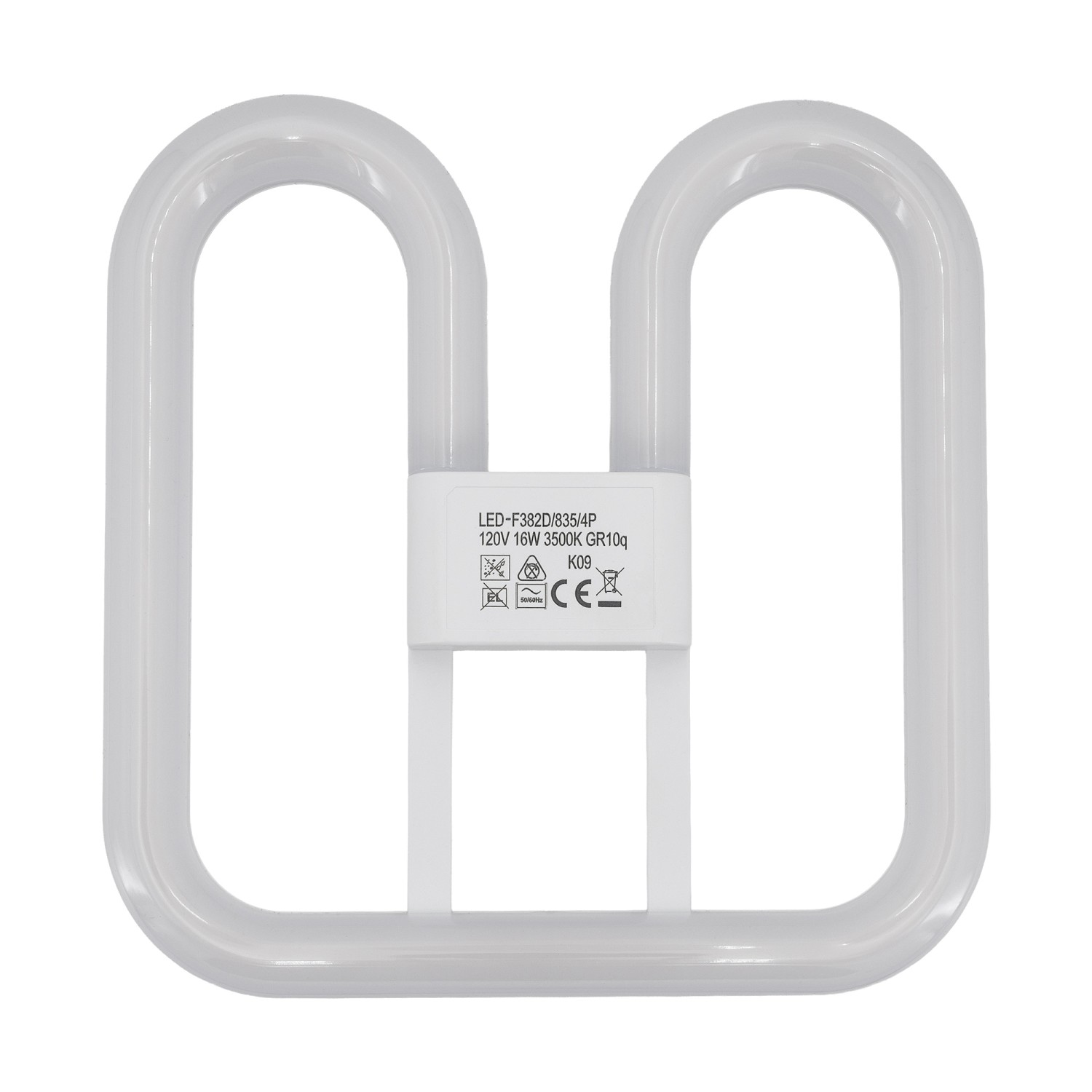

The Norman Lamps LED-F382D/8354P is a 16W 2D LED lamp engineered as a direct-wire, Type-B ballast-bypass replacement for the fluorescent F382D lamp. Operating on 120V with a GR10q-4 four-pin base, this LED delivers 2,000 lumens of soft white 3500K illumination in a compact 7.75 by 7.75 inch square profile with a 5/8 inch T5 tube diameter, making it well suited for offices, corridors, reception areas, kitchens, stairwells, and other commercial or residential spaces where neutral, comfortable light is preferred.

As a Type-B LED, this 2D lamp requires the existing fluorescent ballast to be removed or bypassed so the fixture wires directly to the 120V AC line. Removing the ballast eliminates a common failure point, reduces ongoing maintenance, and improves overall energy efficiency compared to ballast-dependent fluorescent operation. Once the one-time wiring conversion is complete, future LED lamp replacements are simple plug-and-play swaps at the GR10q-4 base.

Built with a high-CRI LED engine rated greater than 90 CRI, the lamp produces accurate, natural-looking color rendering with a wide 180 degree viewing angle for even, glare-free coverage across the fixture opening. The 16 watt LED delivers brightness comparable to a conventional 38W fluorescent bulb while significantly lowering electricity usage and reducing overall energy costs. A 0-10V dimming compatible LED driver allows smooth output control when paired with a compatible low-voltage dimmer.

The LED-F382D/8354P is a direct visual and mechanical replacement for the F382D/827/4P and F382D/835/4P fluorescent 2D lamps. It is rated for 25,000 average life hours and emits no ultraviolet or infrared radiation, more than doubling the 12,000 hour service life typical of comparable 2D fluorescent lamps in this size class. This is another fine quality NLI-USA exclusively produced LED product, sold as a single piece with a case quantity of 20 and backed by a 3 year warranty.

Another Top Quality exclusively produced LED product by NLI

• Type-B LED 2D lamp, 16W input at 120V AC replacing 38W fluorescent F382D/827/4P and F382D/835/4P with the ballast bypassed
• 2,000 lumens of 3500K soft white light with greater than 90 CRI for accurate, natural color rendering in offices, corridors, and low-profile fixtures

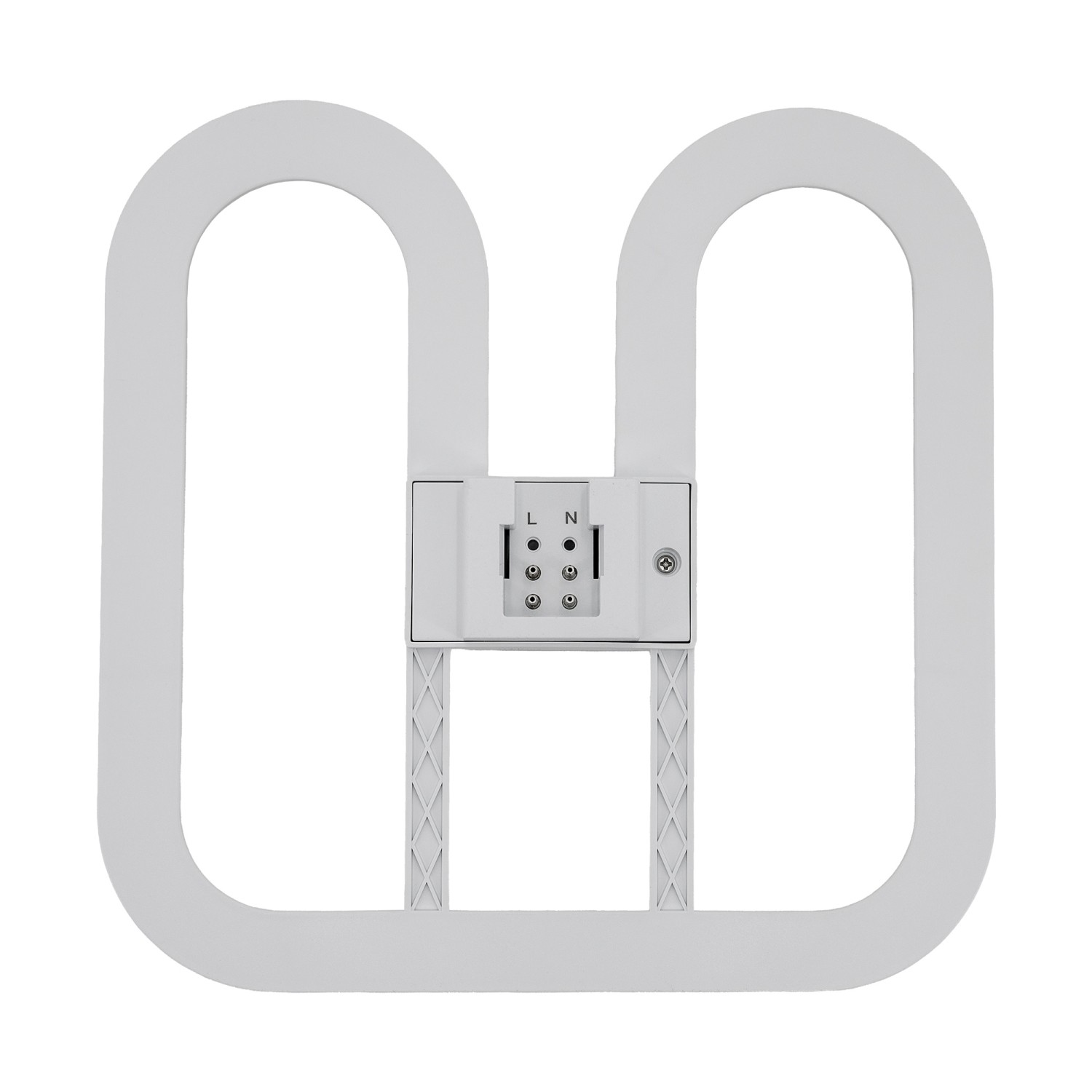

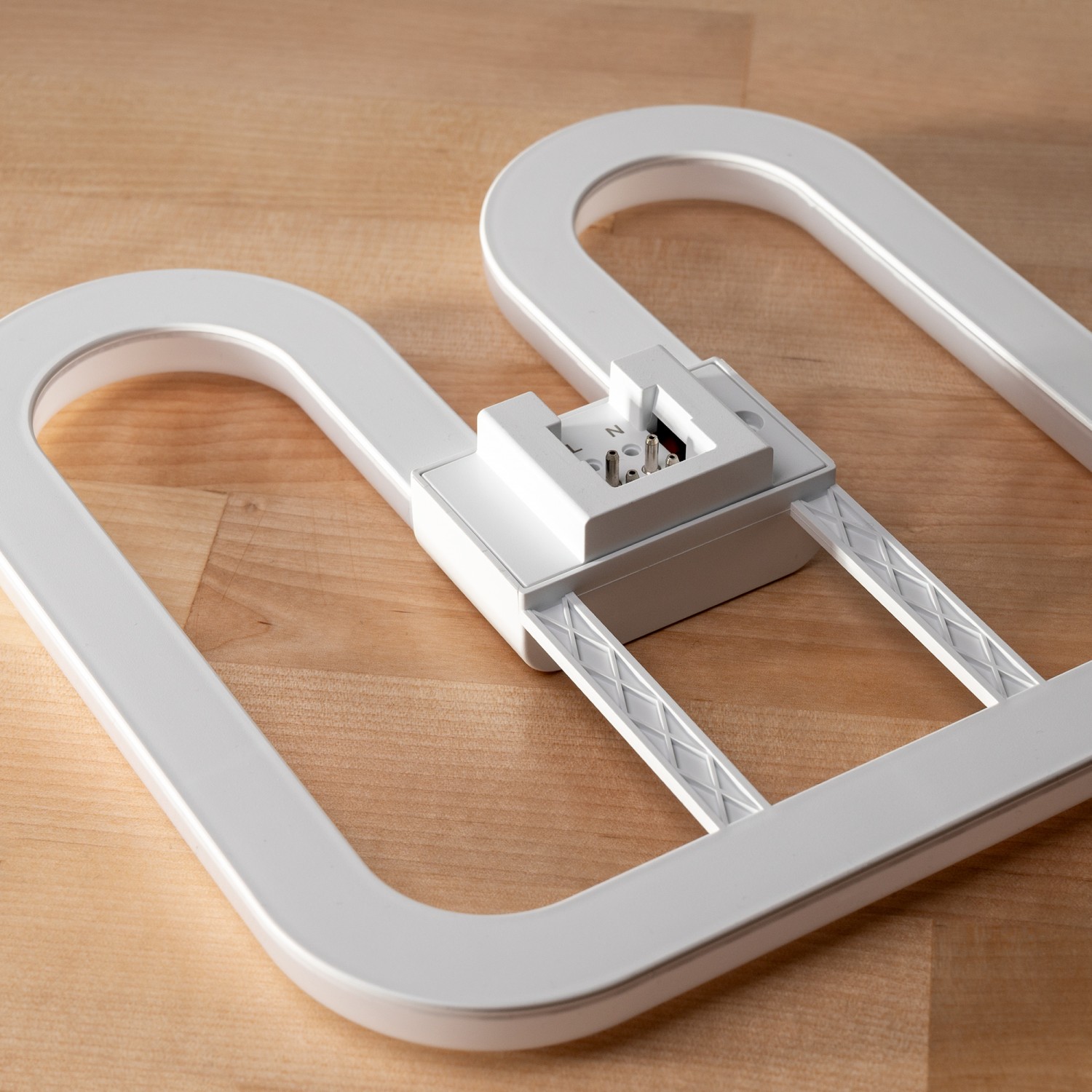

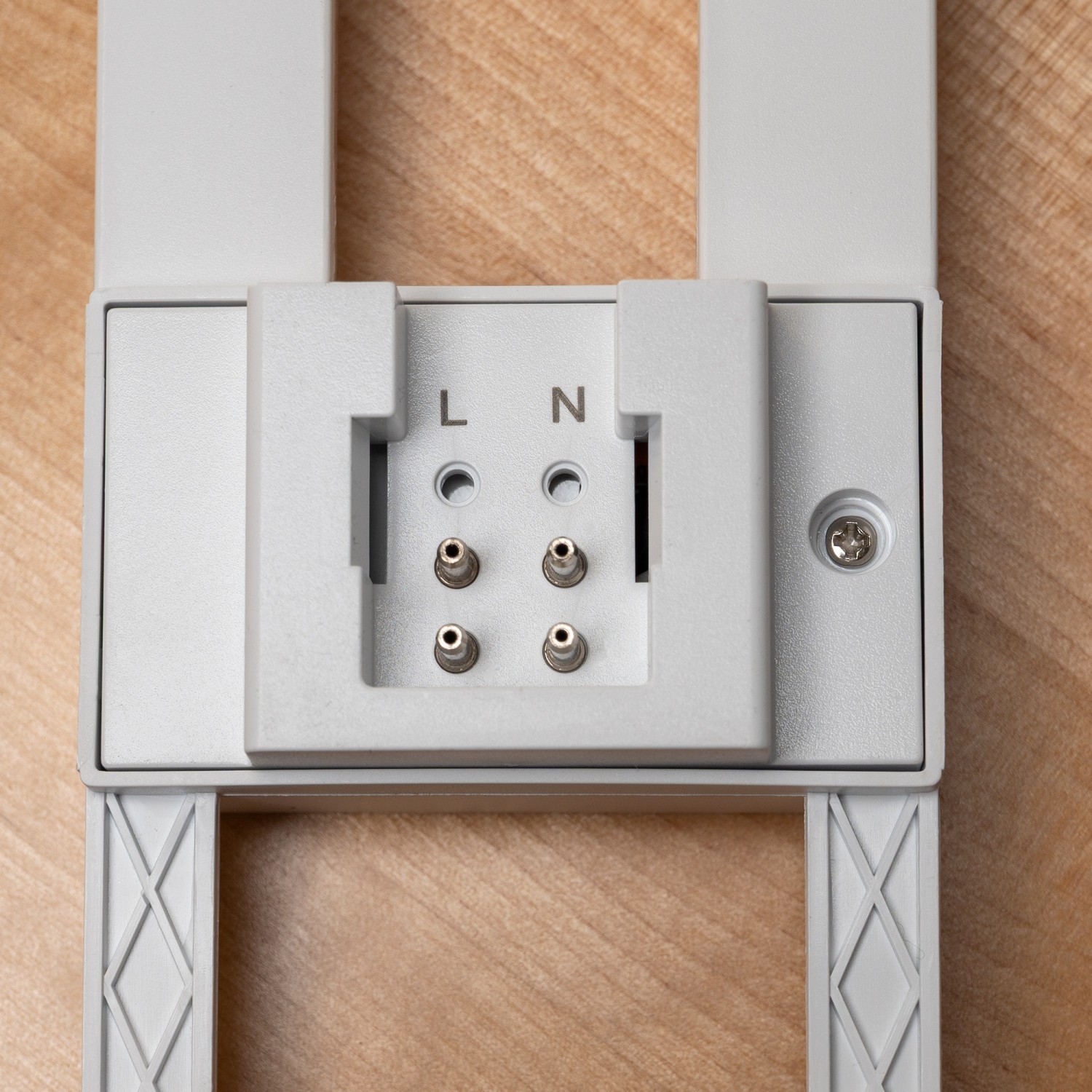

• GR10q-4 four-pin base with a compact 7.75 x 7.75 inch square footprint and 5/8 inch T5 tube diameter for direct mechanical fit
• Rated for 25,000 average life hours with no UV or infrared emission, roughly doubling the life of a comparable 2D fluorescent lamp
• 0-10V dimming compatible LED driver, 180 degree viewing angle, and 0.135A operating current for smooth, energy-efficient performance
• Backed by a 3 year warranty, sold as a single piece with 20 pieces per full case, an NLI-USA exclusively produced LED product

Tags: f382d/835/4p, f382d, f282d, led-f382d, GR10q-4, 3500K, soft white, led, 2d, pretzel
