G24Q-9W-HYB-SEL HYBRID A+B Function CCT Selectable Omnidirectional Light

Brand: Norman Lamps
Product Code: G24Q-9W-HYB-SEL
UPC Code: 600300326604

$14.95

✓ 1,000+ in stock

The G24Q-9W-HYB-SEL is a 9W CLED pin-based LED lamp featuring Hybrid A+B technology, allowing it to operate with an existing electronic ballast (Type A, plug-and-play) or with a direct-wire ballast bypass configuration (Type B), all at 120V–277V. This dual-mode flexibility makes it one of the most adaptable pin-based LED retrofits available, eliminating the need to choose between ballast-compatible and ballast-bypass installations at the time of purchase.

This omnidirectional CLED lamp delivers 1,100–1,200 lumens through a 360-degree beam angle, produced by a double-sided light engine that distributes illumination in all directions just as a traditional compact fluorescent lamp would. A user-selectable color temperature switch lets you choose from five options — 2700K, 3000K, 3500K, 4000K, or 5000K — before installation, covering the full range from warm white to daylight and making a single SKU suitable for a wide variety of commercial, hospitality, office, and retail environments.

Built on a G24Q (GX24Q) 4-pin base, the lamp is a direct LED replacement for traditional 26W compact fluorescent lamps such as the CF26DD/E, CF32DT/E, F26DBX/4P, and F32DBX/4P, reducing energy consumption significantly while delivering comparable or greater lumen output. At 9W versus the 26W or 32W CFL lamps it replaces, this LED retrofit delivers meaningful energy savings over its rated 25,000-hour average life. The lamp measures 6.5 inches in length with a 1.40-inch diameter and is sold individually. It is non-dimmable. DLC cross-reference model number: CH1168-9W 82750-05 G24q.

Exclusive LED lamp product Designed, Produced & Distributed by NLI-USA

9W - 1,200 Lumen CLED 4-Pin Based LED with Hybrid A+B technology
Operates with compatible electronic ballast (Type A) or direct-wire ballast bypass (Type B) at 120V–277V

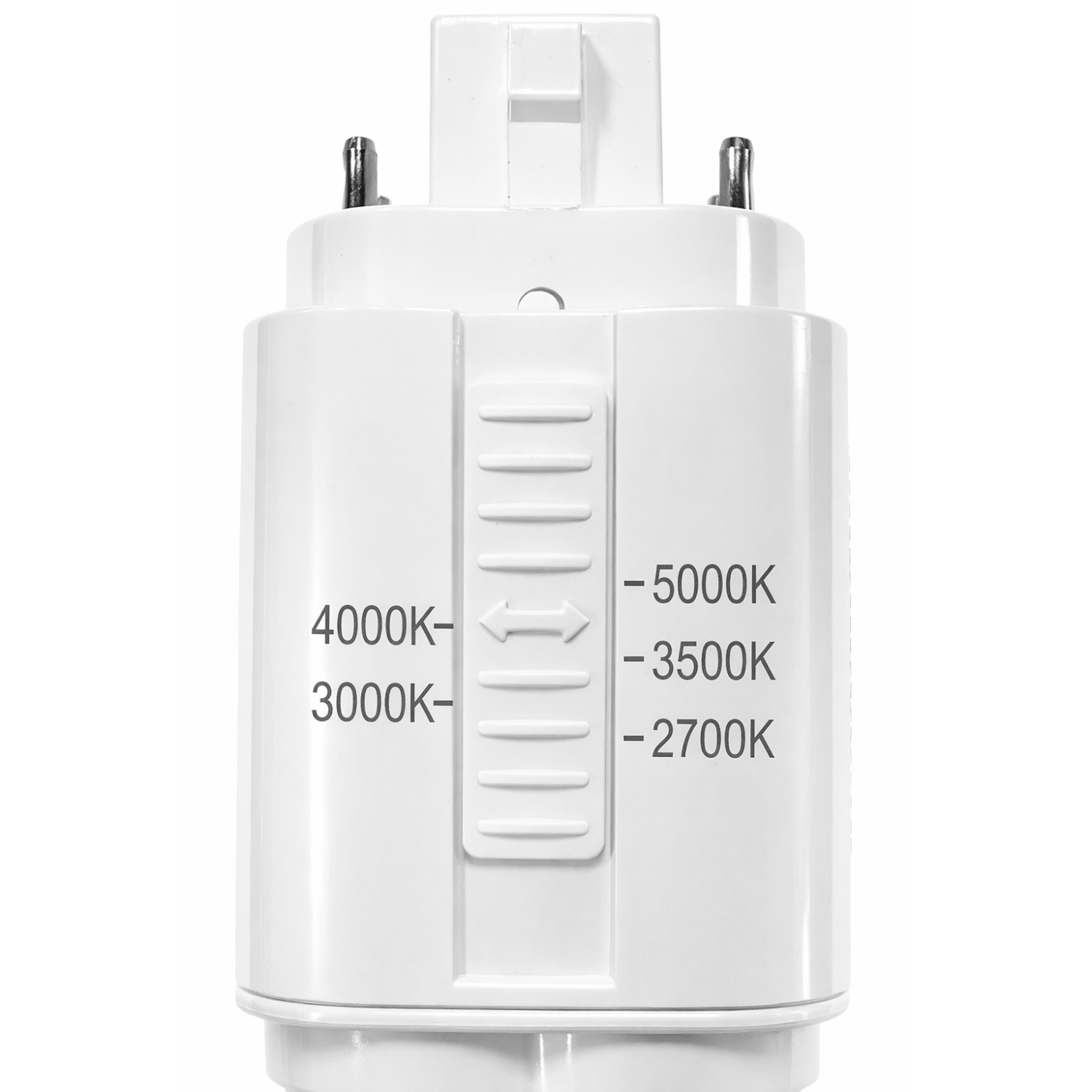

CCT selectable: choose from 2700K, 3000K, 3500K, 4000K, or 5000K before installation to suit application
1,200lm omnidirectional output via 360-degree double-sided beam angle
Direct retrofit for 26W–32W G24Q/GX24Q compact fluorescent lamps
G24Q / GX24Q 4-pin base; replaces CF26DD/E, CF32DT/E, F26DBX/4P, F32DBX/4P and similar CFL types
25,000-hour average rated life; 6.5" length x 1.40" diameter; sold individually, 50 per master case
DLC & UL Listed and Certified LED bulb
NLI exclusive design HYBRID A+B & CCT selectable
Replaces more than 20 different CFL bulbs in one Premium Quality LED bulb
Contact NLI for volume pricing and Freight Allowed potential
Illinois stock on hand and Same Day shipping as always.

Type	File Information
	LED-G24Q-9W-HYB-SEL.pdf File Size - 527.92KB

Detailed Specifications
Voltage	120V~277V Hybrid A + B
Wattage	9W
Type	LED Bulb for CFL retrofit
Color Temp (Kelvin)	Select Color 2.7K, 3K, 3.5K 4K, 5K
CRI	>85
Lumens	1,200
Replaces	CFL Bulbs-over 20 types
Certifications	DLC, UL, FCC
Beam Spread	360 Degree light output
Lamp Shape	Tubular
Length	6.5 Inches
Diameter	1.40
Base Type	G24Q, GX24Q
Average Life Hours	25,000
Case Quantity	Order 50 for a full case
Color Emitted	SELECTABLE CCT
Is It Dimmable?	No
Cross Reference	DLC Model CH1168-9W 82750-05 G24q
DLC Model Number	CH1168-9W 82750-05 G24q

G24Q-9W-HYB-SEL HYBRID A+B Function CCT Selectable Omnidirectional Light

$14.95
